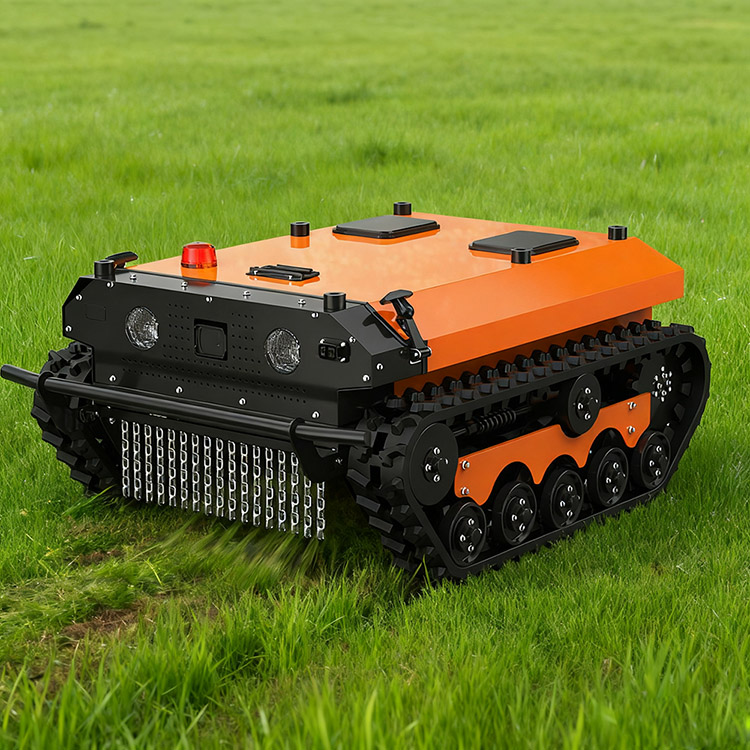

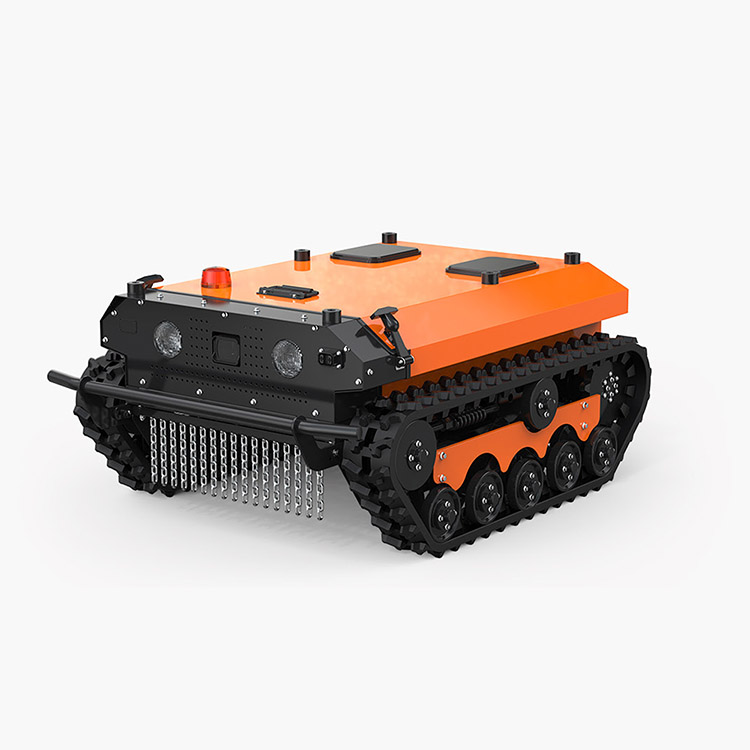

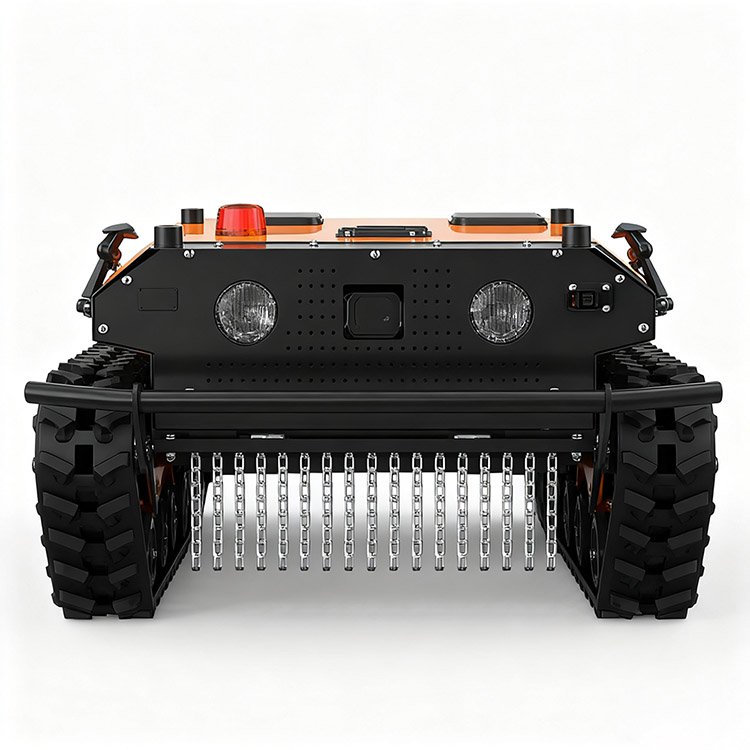

PDM50E Commercial Intelligent Robot Lawn Mower

The PDM50E intelligent lawn mower acquires centimeter-level position information of the lawn mower through GNSS differential technology, acquires heading attitude information of the lawn mower through satellite navigation and IMU inertial navigation data fusion technology, defines the working range of the lawn mower by electronic fence, and drives the walking motor to achieve the walking and turning of the lawn mower. The mowing operation is carried out by driving the cutter head through the motor spindle. The intelligent perception of the working environment, especially obstacles, is achieved through sensors such as lidar and microwave radar. It has strong self-learning and self-adaptability to the environment. On-site interaction such as working Settings and lawn map acquisition of the intelligent lawn mower can be done through the mobile phone or tablet computer APP. Remote interaction with the background is achieved through the military private network to complete functions such as task assignment, progress upload of operations, and real-time monitoring of operation scenarios.

Model	PDM50E
Dimensions (length * width * height)	1235*970*560MM
Weight (including battery	270kg/300kg
Material	Metal (iron)
Boundary line	/
Maximum mowing area	1665㎡/h
Mowing time (each full charge)	150min/300min

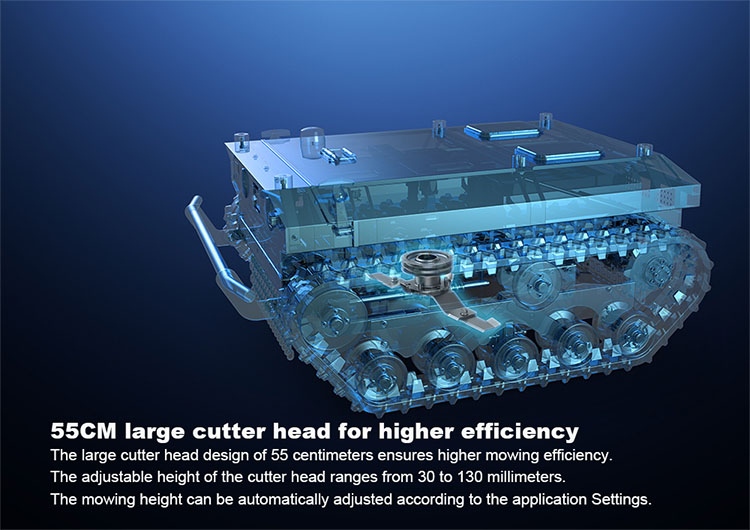

Mowing width	55cm
Mowing height	30-130mm
Working temperature	0℃~50℃
Waterproof grade	IPX5
The maximum inclination of the working area	30°
Bluetooth	yes
Wi-Fi	yes
Battery type	Lithium iron phosphate battery
Battery capacity	52000mAh/105000mAh
Input voltage	/
Output voltage	/
Output current	/
Working noise	70dB(A)

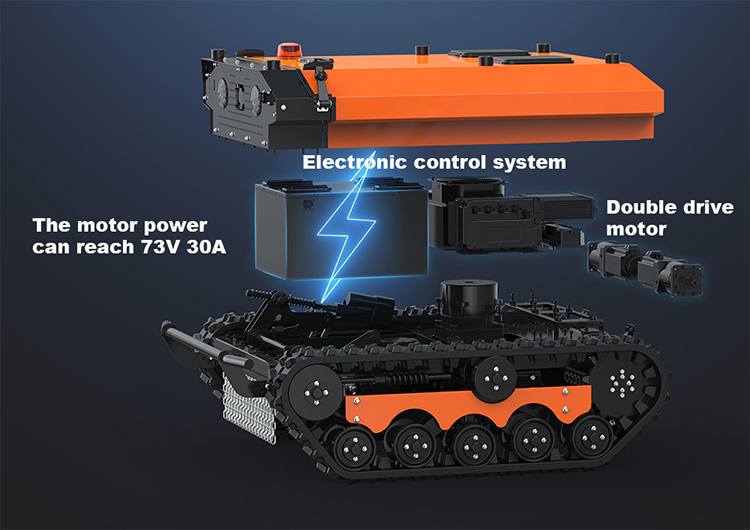

Equipped with three major power systems

Equipped with a large-capacity battery, a powerful motor and an advanced artificial intelligence controller

High precision, high reliability & ±2CM operation accuracy

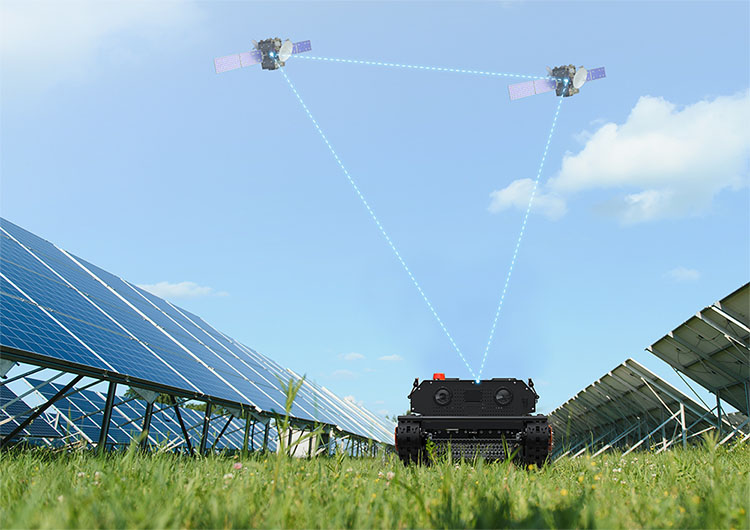

The PDM50E crawler-type intelligent lawn mower is equipped with an independently developed navigation solution of “satellite navigation + inertial navigation + microwave radar” Realize intelligent perception in complex environments and achieve autonomous, safe and stable operation.

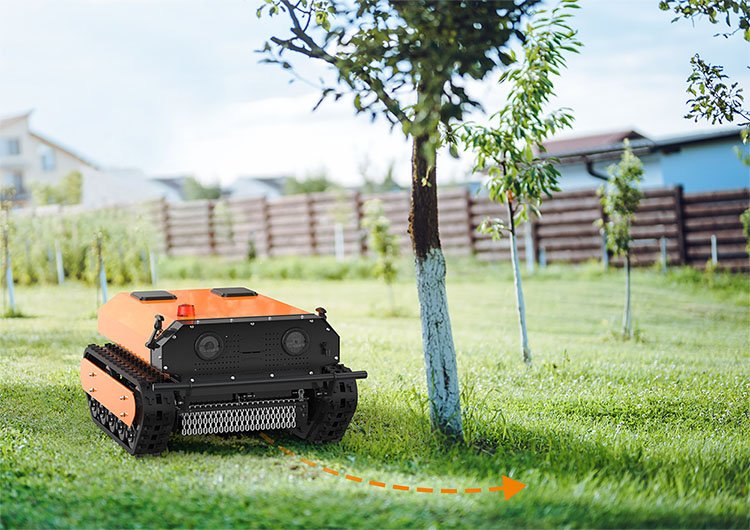

Safe and precise obstacle avoidance

The intelligent perception of the working environment, especially obstacles, is achieved through sensors such as lidar and microwave radar, which has a strong capability It has the environmental self-learning and self-adaptive capabilities, and is equipped with a variety of sensors, including lift detection, tilt detection and reverse detection. Bid farewell to the worry of unexpected accidents and enjoy the reassuring experience brought by using an intelligent and reliable lawn mower.

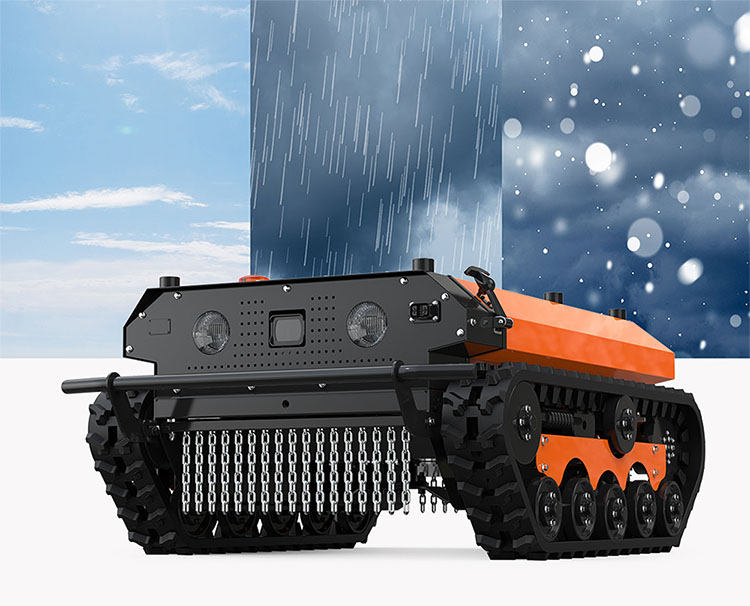

All-weather operation

Unafraid of scorching sun, wind, rain, heavy snow and other harsh weather conditions, the M50E can work in any climate.
