Professional Dental 3D Printer

At present, the best professional dental 3D printer, serving all kinds of dental use scenarios, welcome to contact us for free quotation.

Shape1/Shape 1HD dental 3D printer is mainly developed for dental prosthodontics and medical field. It has more efficient speed and precision and better stability performance.
Digital dentistry refers to the use of computer technology and digital equipment to assist in diagnosis, design, treatment, and information tracking.

At present, the design and manufacture of oral prosthesis is still mainly manual in clinical practice, with low efficiency. Digital technology not only solves the tedious manual procedures, but also eliminates the bottleneck of manual modeling accuracy and low efficiency.Through 3D scanning, CAD/CAM design, dental laboratory can accurately, quickly and efficiently design crown and bridge, gypsum model and the plant guide, orthotics, etc., the design of data directly by 3D printing produce resin model, realize the whole process of digitization.The application of 3D printing technology further simplifies the manufacturing process and shortens the cycle of oral cavity repair.

Parameter table

	Shape 1	Shape 1 HD
Build Volume	192×108×300mm	144×81×200mm
Pixel Sze	100 micron	75 micron
Dimensional Accuracy	±75 micron	±50 micron
Technology	Low Force Peeling DLP Technology
Layer Thickness	25 – 300 microns
Printing Speed	50 mm (2 inches) / 1 hour @ 100 microns layer thickness ( Depends on the resin type and slice settings )
Materials
Materail Series	Standard, Water Washable, Gray, Black, Tough, Rigid, Durable, High Temp, ESD-Safe, Flame-Resist, ExtraFine, Dental Model, Dental SG, Dental Ortho, Dental Gingival
Capacity	2.2 lb ( 1 kg )
Hardware
Curing Unit	1080P FHD Projector, Texas Instruments DMD Chip UV LED light source
Light Wave Band	405 nm
Resolution	1920 × 1080 pixel
Screen	7 inches touch screen
Connectivity	USB Flash Disk, Wireless, Ethernet
Input	100-240 VAC，50 Hz
Power	200 W
Software
Operating System	Windows 7/8/10
File Format	.STL, .OBJ, .SHAPE
Slicer	ShapeWare
Language	English, Chinese
Size & Weight
Device Dimension	420×462×815mm	420×455×655mm
Device Dimension (Open the door)	420×886×815mm	420×879×655mm
Net Weight	33kg	29kg
Package Dimension	560×600×955mm	560×595×795 mm
Package Weight	39kg	35kg

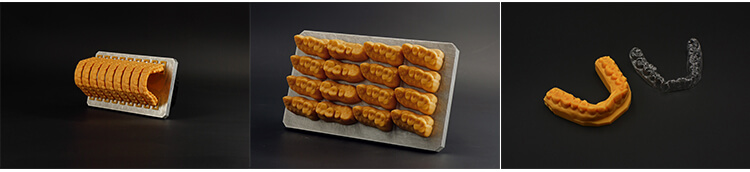

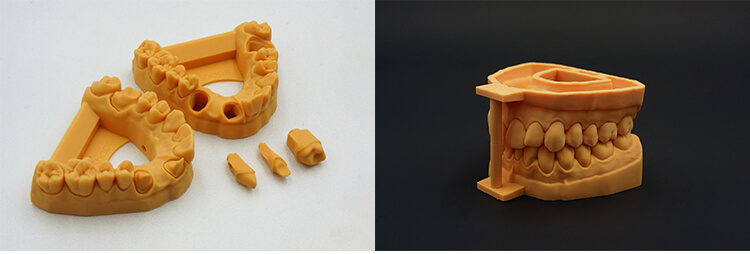

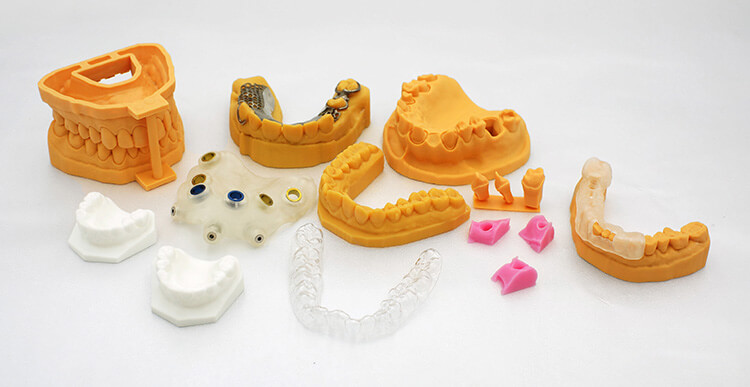

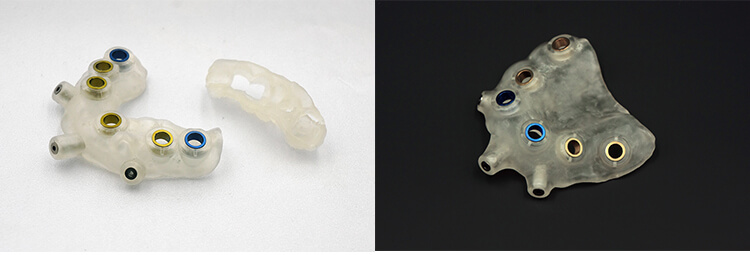

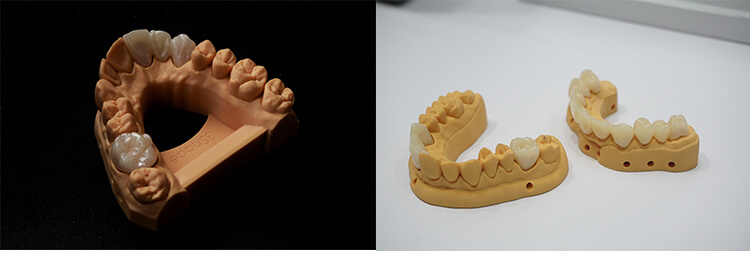

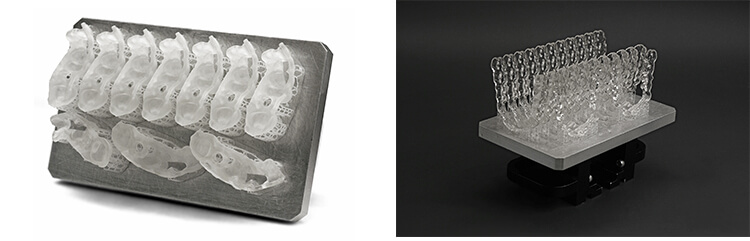

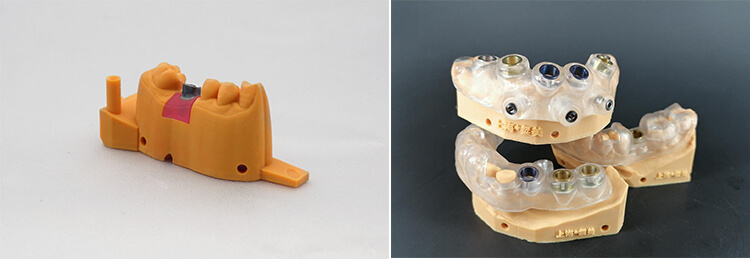

3D Printing Teeth Display

Shipping Method:

For 3D printers, the 3D printers packed on pallet along with all accesories are usually shipped by sea with a 40HQ container . Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years . the shiping fee is on customers, but we will provide all necessary assistance. if you are in urgent need of the printer , Air shipment is also available . but it is costly .

For 3D Printing service , goods will be packed in carton, if small quantity , we recommend you by air , DOOR TO DOOR service , if big quantity , they can be sent by ship , Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years . the shiping fee is on customers, but we will provide all necessary assistance.

For 3D Design & Modeling service , we will send you the files through internet , by email or other way that you can receive.
