LCD industrial desktop 3D printer

The LCD machine have three type with different sizes, which are often used for independent development and used by the company.

Category:
Description

Super high cost performance

Prindream series LCD 3D printer is a 3D printer for plastic materials with high cost performance at present, which can maximize printing size and printing efficiency while ensuring accuracy, and the price is only half of that of industrial printer.



Diversity of materials

PrinBox Series LCD 3D Printer can take into account 10 Performance materials’ printing at The Same Time. Tough materials, rigid materials, transparent materials, soft plastic materials, high temperature resistant materials, water washing materials and casting wax materials can be freely switched to use, and it truly achieves a multi-purpose effect of one machine.



Higher printing speed, finer printed samples

High uniformity matrix light source + large size 4K high resolution LCD screen bring the sharp edge and fine characteristics of razor. This is the manufacturing process you can really rest assured. The height of 15mm per hour can be printed, the whole surface of the molding mode to ensure that the single part and the whole part of the printing time is almost the same.



Product Development Tools for R&D

Prindream 3D printer can print your precision parts anytime, anywhere in the office environment. As an auxiliary tool, it is the best choice for R&D department.



Let idea play a practical role in accelerating the launch of new products

Prindream Series 3D printer can produce precision plastic parts, and it’s the the ideal choice of functional prototype production, rapid tooling, spare parts production and other applications. Many of your design requirements can be printed using a variety of materials to quickly complete the design verification and performance testing, and it is faster to market the product to achieve mass production.



Good-looking appearance, desktop-level design

The appearance of Prindream Series 3D Printer is created by professional industrial product designers. One can not see a screw outside the equipment. The gray-black acrylic door is opened by pressing type, the shading effect is good, and the curing of the resin material can be effectively prevented.



LCD-3D-printer_03

Equipment Parameters

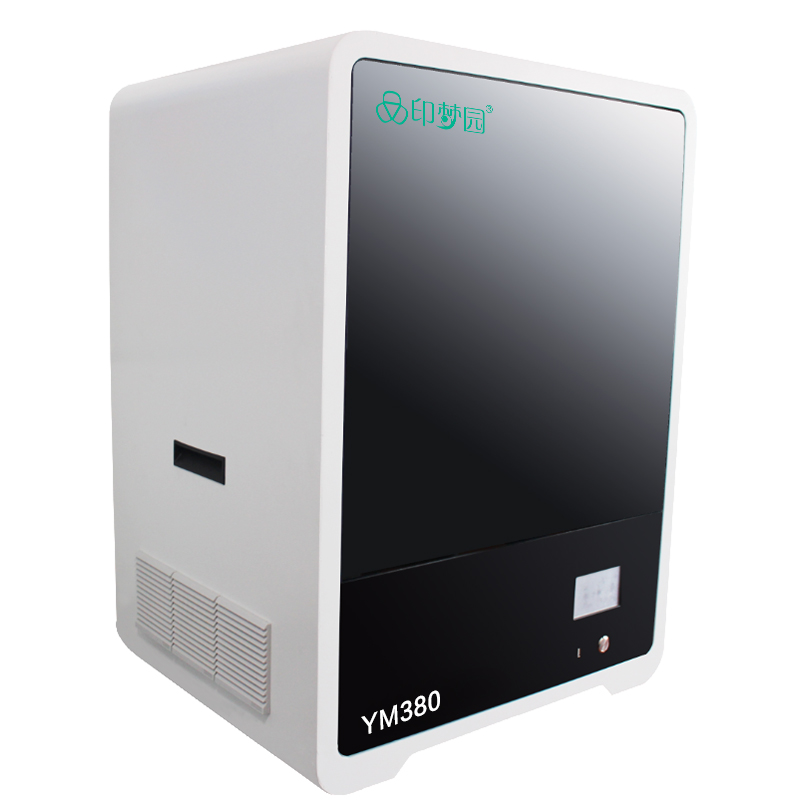

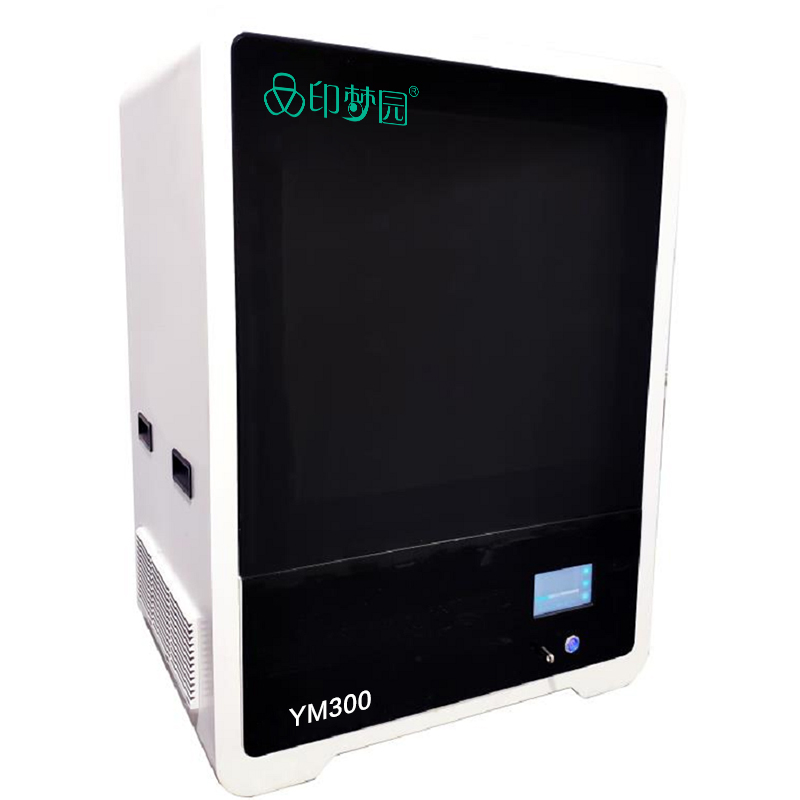

Model YM300 YM350 YM380
Wave Length 405nm 405nm 405nm
Illuminant UV matrix parallel light source UV matrix parallel light source UV matrix parallel light source
Resolution 3840×2160(4k ultra-high resolution) 3840×2160(4k ultra-high resolution) 3840×2160(4K ultra-high resolution)
Technology LCD  Digital photo curing molding LCD  Digital photo curing molding LCD Digital photo curing molding
Build Size 309mm×173mm×300mm 345mm×193mm×350mm 382mm×214mm×400mm
Equipment Size 650mm×510mm×900mm 650mm×510mm×900mm 750mm×600mm×1000mm
Screen Parameters Hd 14inch 4K ULTRA hd LCD screen hd 15.6 inch 4K ULTRA hd LCD screen Hd 17.3inch 4K ULTRA hd LCD screen
Build Speed 15mm/hr(layer thickness0.1mm) 15mm/hr(layer thickness0.1mm) 15mm/hr(layer thickness0.1mm)
Screen pixel accuracy 80μm 90μm 100μm
XY axis accuracy ±50μm ±50μm ±50μm
Z axis accuracy 20μm 20μm 20μm
Layer Thickness 0.025-0.1mm   adjustable 0.025-0.1mm  adjustable 0.025-0.1mm      adjustable

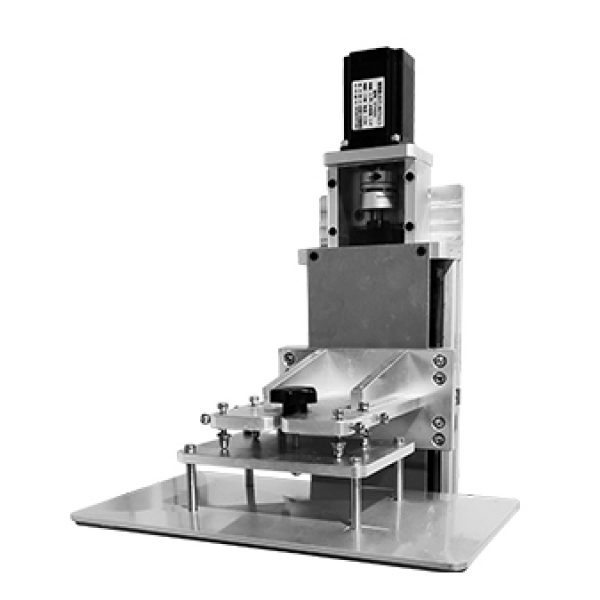

The Z axis module Industrial grade sliding platform module Industrial grade sliding platform module Industrial grade sliding platform module
Control software ChiTuBox ChiTuBox ChiTuBox
System requirement Windows7/10 Windows7/10 Windows7/10
File format STL STL STL
Attended mode  Network Cable/USB  Network Cable/USB  Network Cable/USB
Operating ambient temperature 20-30℃ 20-30℃ 20-30℃
Operating ambient humidity 40%-50% 40%-50% 40%-50%
Weight 95KG 105KG 125KG
Machine power 220V/500W 220V/600W 220V/750W
Material 405nm  photosensitive resin 405nm  photosensitive resin 405nm  photosensitive resin

LCD-3D-printer_05

Material parameters

The resin type High toughness resin 803 Transparent resin 804 Soft plastic resin 806 Dental resin 807 Temperature resistant molding resin 808 Wax casting resin 809
Color Multiple color selection Transparent Multiple color selection Multiple color selection Multiple color selection Multiple color selection
 Viscosity(CPS) 300±50 200~1000 400±50 300±50 300~600 200~1000
Density 1.15±0.02 1.10±0.02 1.10±0.02 1.20±0.02 1.13±0.02 1.10±0.02
Hardness (D) 80~85 70~85 55~65 80~85 90~100 65~85
 Tensile Strength(MPa) 55~80 55~75 30~50 55~75 60~90 35~60
Flexural Strength(MPa) 65~90 50~85 35~65 45~80 65~95 40~70
Young Modulus (MPa) 2600 2500 1500 3000 3500 1800
HDT(℃) 75 65 45 70 120 45
Volume Shrinkage Rate(%) 3.3~4.6 3.5~4.6 2.5~4.5 2.5~3.5 1.5~2.5 2.5~4.0
Linear Shrinkage Rate(%) 1~1.5 1~1.8 0.6~1.0 0.6~1.0 0.5~1.5 0.8~1.2
Elongation 18 20 200 8 5 25
Impact Strength 38~50 30~50 70~90 22~30 10~20 30~40
Usage It is used in industrial design, consumer electronics and other fields,and used for making common parts, structural parts and functional parts It is used in industrial design and art field,and used for making transparent shells of industrial products and handicraft models It meets requirements for  soft models in industrial design area,and is mainly used for soft model making of functional parts and handboards Applied to the field of dentistry,It has good heat resistance and scratch resistance,it can ensure the high temperature vacuum film does not deform,and is used for orthodontic and generational assembly of dentistry It is used in medical treatment, dentistry, automobile, consumer electronics and so on;Typical Use:high temperature pressing die and assembly of dental model It is used in the field of jewelry casting.Three main types of casting resins are available,namely low wax, medium wax and high wax。The higher the wax content, the easier the casting and the higher the cost
Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
