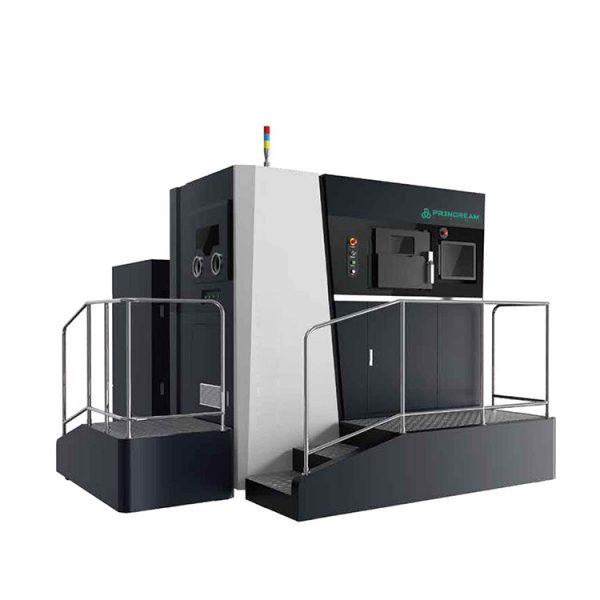

SLM PD-400 Large precision industrial metal 3D printer

Printing size: 400*435*435mm, large metal 3D printer can be used for large metal parts manufacturing and small batch production requirements.

Category:
Description

The build size of SLM-PD-400 large metal 3D printer is up to 435mm, which provides a better choice for customers’ manufacture or design of large parts.

It adds a unique metal powder recovery module and a highly integrated post-processing unit, etc., and perfectly achieves the work style of intelligent parallel and 24-hour non-stop run. With double laser and double galvanometer efficient configuration, it maximizes efficiency and satisfies the manufacturing requirements of high strength, persistence from the prototype production to small batch customization manufacturing. It can print a variety of metal materials, and the precision can reach plus or minus 0.1-0.2 mm, and it is used for strong detail expressive force of the application in various fields, such as non-standard parts production, aerospace, automotive parts, mold production and other high-end manufacturing fields.



SLM Series

SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high powered laser selectively fuses the powder by tracing cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of protective gas chamber to avoid the metal powder reacts with oxygen at high temperature.

3d metal printer

Common Application

The SLM Series meets global rapid prototyping requirements.

It is perfectly suited for below fields: Automotive/Aerospace/Industry/Jewellery & Watches/Footware/Sports Equipment/Medical/Tooling/Rapid Prototyping

buy 3d metal printing machine (1)



Features

1. Parts with high quality surface before polishing.

2. Parts in high accuracy, for precision samples.

3. Directly produce functional metal parts, simplify the manufacture process.

4. Parts have metallurgy and mechanical properties, relative density higher than 99%. Post process is unnecessary.

5. Parts can be printed within minutes to hours according to the size and complexity.

6. Directly produce functional complex geometric parts like snap-fit or loose joint hinge

7. Parts can be finished in minutes or hours based on the complexity.

8. Widely chosen materials, the metal powder could be single metal or alloy.

9. Especially for single part or small amount of functional parts.

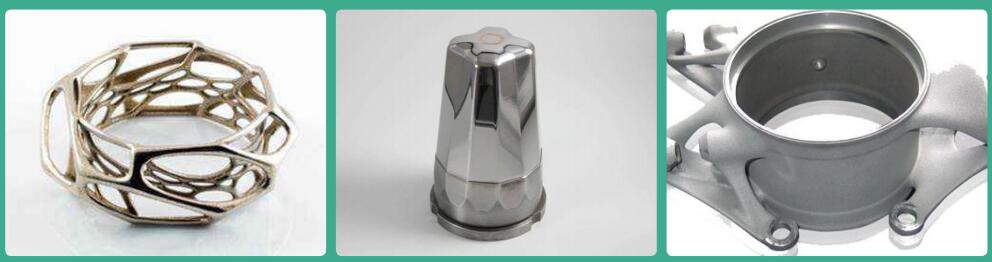

Metal printing parts 01 (1)



Software

Ultra-fast printing speed, the ultimate dimensional accuracy, excellent surface quality. Prindream SLM 3D printer series will be your most sensible choice.

1. Print details with accuracy achievable up to 0.02mm.

2. Produce functional metal parts directly and easily.

3. Produce complicated metal parts with excellent mechanical properties.

4. Print with different metal powders for various applications.

5. Suitable for producing single customized parts or small batch production.

Metal printing parts 02 (1)

Specification

Molding size 400*435*435mm
Laser Power 500W/500W×2
Print thick 30-100μm
Scanning Track Width 70-2000μm
Scanning Speed ≤7000mm/s
Oxygen Content ≤100PPM
Protective Atmosphere Integral sealed, automatic monitoring of oxygen content, recycling cleaning
and collection coefficient ≥ 99%.
Relative Density Nearly 100%.
Typical Accuracy 0.05-0.01mm
Metal Power Stainless steel, Cobalt-chrome alloy, Tool steel, Titanium alloy, High
temperature alloy, Hastelloy, and some precious metals.
Software Package Full opening within hardware allowed.
Processing Parameter Package Equipped and customizable.

Display the printed copies of different materials

Material display

Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
