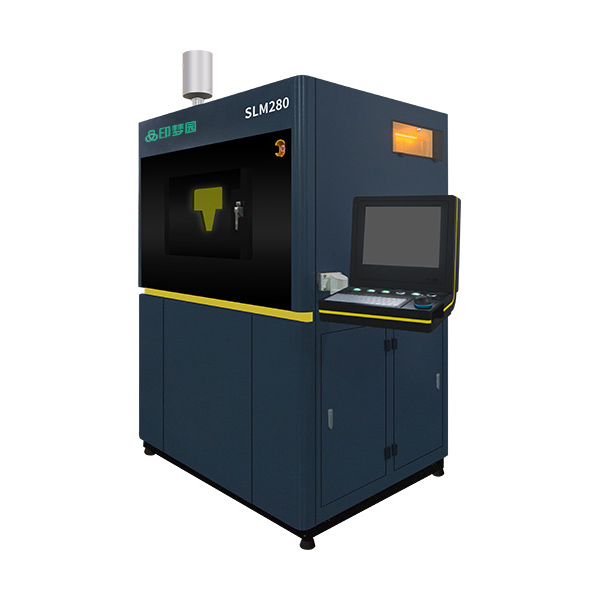

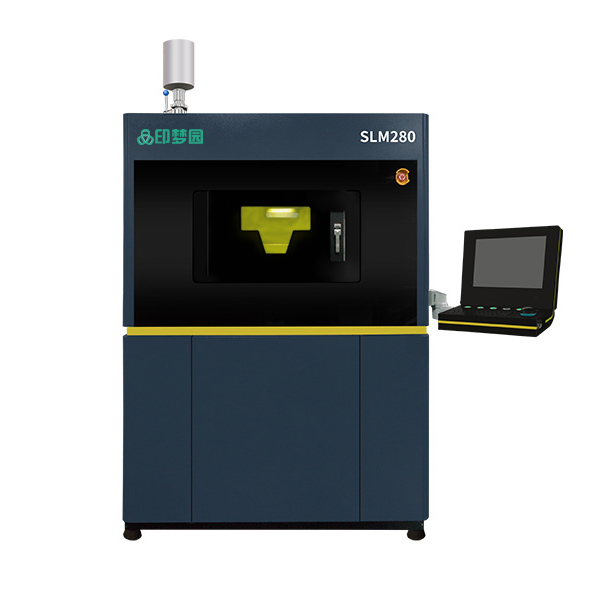

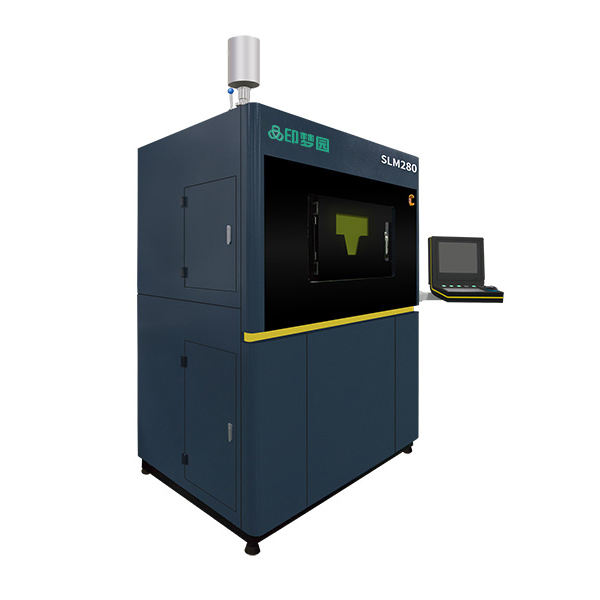

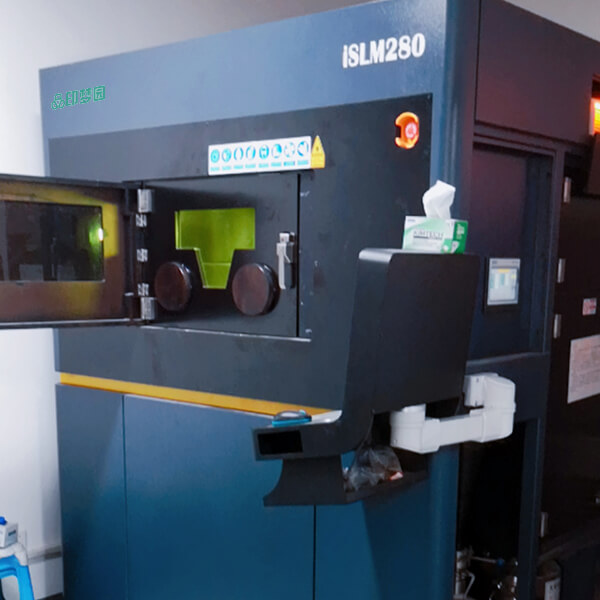

SLM280 high precision industrial metal 3D printer

SLM280 metal 3D printer developed by our company for many years can print different metal materials. For example,it can print stainless steel, aluminum alloy, titanium alloy, mold steel, copper alloy and other common metal materials.

Currently, metal 3d printing technology is applied to the non-standard parts manufacturing, aerospace, rapid casting, mold manufacturing and other numerous areas of high added value.Metal 3d printer’s price is very high all over the world, we rely on the continuous technology improvement,so the price we provide is lower than others, at least lower more than half or even more. We just hope to bring more users to experience science and technology.Yes, our main advantage is cost-effective, with lower prices, higher precision, and better service to satify your demand. We always uphold the slogan: To create for the creators.We will always sincerely serve the user.

SLM Series

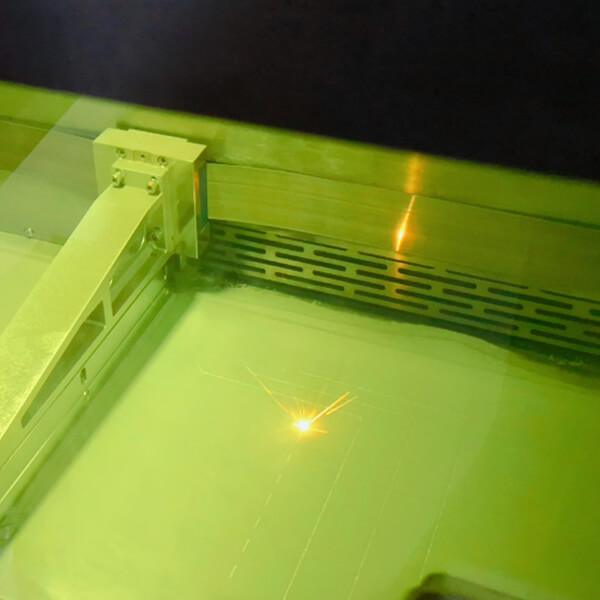

SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high powered laser selectively fuses the powder by tracing cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of protective gas chamber to avoid the metal powder reacts with oxygen at high temperature.

Common Application

The SLM Series meets global rapid prototyping requirements.

It is perfectly suited for below fields: Automotive/Aerospace/Industry/Jewellery & Watches/Footware/Sports Equipment/Medical/Tooling/Rapid Prototyping

Features

1. Parts with high quality surface before polishing.

2. Parts in high accuracy, for precision samples.

3. Directly produce functional metal parts, simplify the manufacture process.

4. Parts have metallurgy and mechanical properties, relative density higher than 99%. Post process is unnecessary.

5. Parts can be printed within minutes to hours according to the size and complexity.

6. Directly produce functional complex geometric parts like snap-fit or loose joint hinge

7. Parts can be finished in minutes or hours based on the complexity.

8. Widely chosen materials, the metal powder could be single metal or alloy.

9. Especially for single part or small amount of functional parts.

Software

Ultra-fast printing speed, the ultimate dimensional accuracy, excellent surface quality. Prindream SLM 3D printer series will be your most sensible choice.

1. Print details with accuracy achievable up to 0.02mm.

2. Produce functional metal parts directly and easily.

3. Produce complicated metal parts with excellent mechanical properties.

4. Print with different metal powders for various applications.

5. Suitable for producing single customized parts or small batch production.

Specification

Laser-type	Fiber laser
Wave length	1064nm
Laser power	500W
Coating way	Scraper dusting in both directions
Normal thickness	0.05mm
Rapid layer thickness	0.05~0.15mm
Precision manufacturing layer thickness	0.02~0.05mm
Facula(dia.@1/e²)	0.06~0.20mm
Scanning galvanometer	High speed scanning galvanometer
Scanning speed of parts	1.0~4.0m/s（recommend）
Jumping speed of parts	10.0m/s（recommend）
Reference production speed	4~20cm³/h
Blanket gas	Nitrogen, argon（Reactive metal materials must be protected by argon）
Flow control	0~3 L/min Intelligent adjustment
Dust control	High efficiency protective gas circulation system
Standard volume	About 25L
Forming area	280mm(X) × 280mm(Y) × 350mm(Z)（No screw hole rounded Angle, etc）
Maximum one piece weight	50kg
Heating type	Precision resistance wire heating
Formed material	Stainless steel, mold steel, titanium alloy, aluminum alloy, cobalt-chromium alloy, nickel alloy, copper, etc
Network type	Ethernet,TCP/IP，IEEE802.3
Control software	iSLM(Presto SLM) manufacture software
Data processing software	3d Layer
Data interface	CLI file，SLC file，STL file
Power	200~240VAC 50/60Hz, single phase, 25Amps
Environment temperature	20-26ºC
Relative humidity	Below 40%，Frost-free knot
Equitment size	1.70m(W)×1.40m(D)×2.20m(H)（No computer rack）
Equitment weight	About 1500kg
Laser	5000 hour or 12 month（Whichever comes first）
The whole machine	12 months from the date of installation

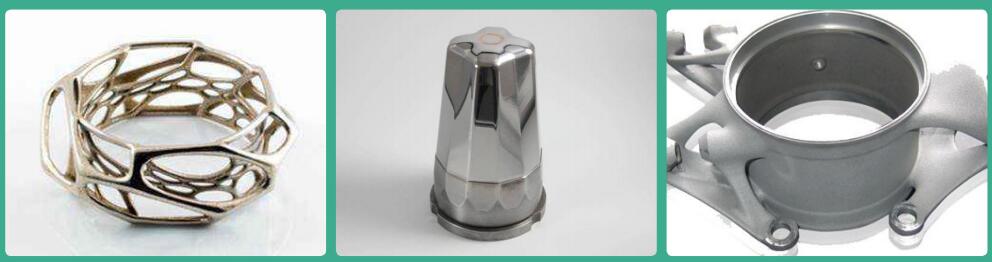

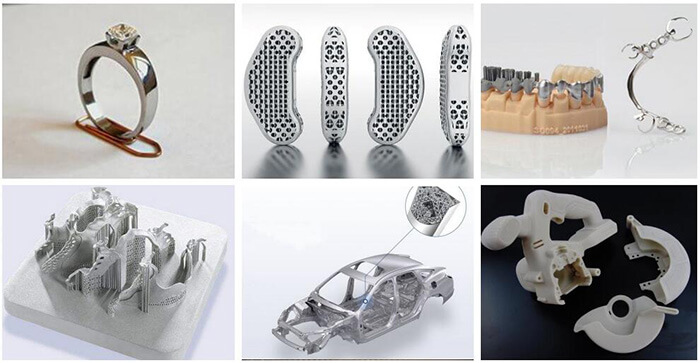

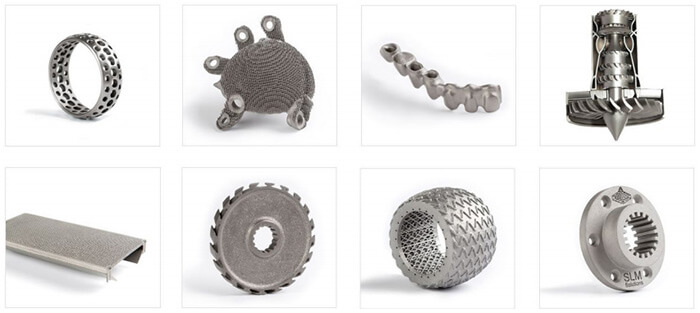

Material display

Shipping Method:

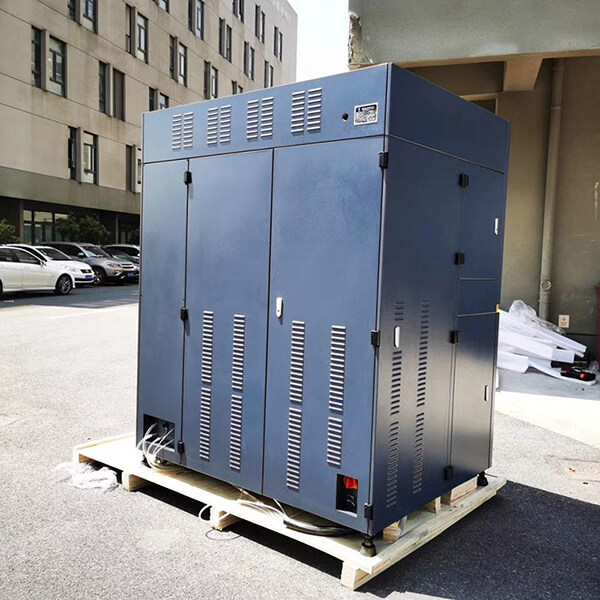

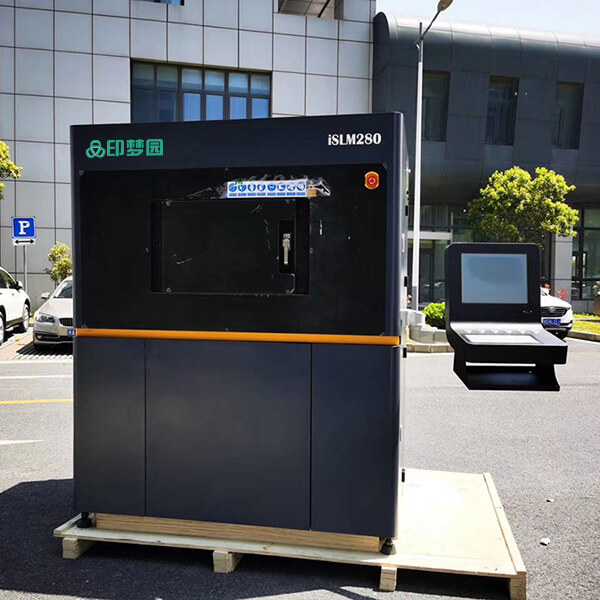

For 3D printers, the 3D printers packed on pallet along with all accesories are usually shipped by sea with a 40HQ container . Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years . the shiping fee is on customers, but we will provide all necessary assistance. if you are in urgent need of the printer , Air shipment is also available . but it is costly .

For 3D Printing service , goods will be packed in carton, if small quantity , we recommend you by air , DOOR TO DOOR service , if big quantity , they can be sent by ship , Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years . the shiping fee is on customers, but we will provide all necessary assistance.

For 3D Design & Modeling service , we will send you the files through internet , by email or other way that you can receive.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
