PDM18 New Smart Electric Household Robotic Lawn Mower
PDM18 New best-selling robot lawn mower features intelligent positioning for efficient grass cutting and is easy to carry
Description
Prindream, a leading Chinese Manufacturer of Lawn Mowers
PDM18 Smart Home Mowing Robot
PDM18 is a smart lawnmower, with a working width of 18cm.It adopts the low-cost single point positioning GNSS/IMU integrated navigation scheme, takes advantage of the spatio-temporal coherence characteristics of GNSS positioning on a small scale,and adopts the unique positioning navigation, path planning and inteligent control algorithm of Junchuangfu Company to realize the operation of the lawn mower along the parallel route. Compared with the traditional line random mower, the operation efciency can be increased by about 2 times. The product is suitable for family lawns with an area of less than 1000 square meters.
At the same time, in order to compare the efficiency with the conventional 18CM line random mower on the market, the PDM18 also has a random operation function, which can be set in the mobile APP. By default,the PDM18 is in ordered mode.
Comparison of operation efficiency of large area turf.
Close to PDM18 nominal working area, lawn area of 2000㎡The following is the trajectory of the operation in ordered mode, which lasted 13.5 hours.
Time-Saving, Effort Saving & Money Saving
Enjoy courtyard intelligence and views

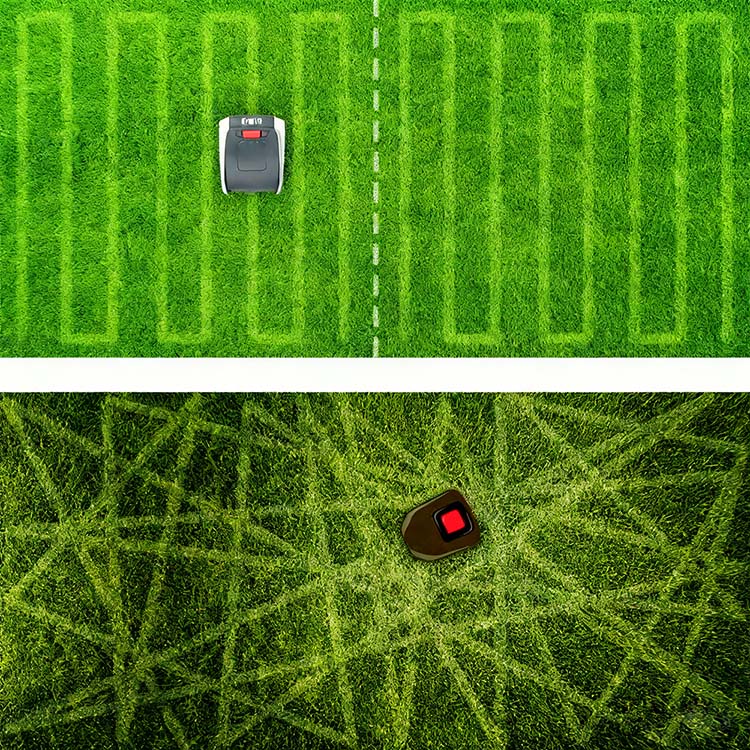

Lawn coverage is higher than random mowers
Under the nominal working area of the product and the typical small lawn working area, the third-party high-precision positioning
device was installed on the PDM18 to record the PDM18 mower working track record, and the coverage rate was calculated, and the
difference in working efficiency between orderly mowing and random mowing was compared.
device was installed on the PDM18 to record the PDM18 mower working track record, and the coverage rate was calculated, and the
difference in working efficiency between orderly mowing and random mowing was compared.
GPS positioning + Boundary line
Double protection, Adhere to the boundary, Safer mowing
VS
Others with Boundary line
Inaccurate positioning, Going ff track, Fall into pool, Not safe
Automatically returns charging station
Close”Rain Sensor”,PDM18 will go back to charging station when rain is detected.
Pick up mowing exactly where it left off, ensuring continuous coverage of your lawn without interruptions.
| Basic Information | Product Name | Robotic Mower |
| model | PDM18 | |
| Dimensions (Length * Width * Height) |
46x37x22cm | |
| Net Weight (Battery Included) |
8.3kg | |
| Mower Parameters | Material | Plastic |
| Working Capacity (Per Full Charge) |
1000㎡ | |
| Typical Mowing Time (Per Full Charge) |
150min | |
| Working Conditions | Cutting Width | 18cm (7.0inch) |
| Cutting Height | 20-55mm (0.79-2.17inch) | |
| Charging Time | 150min | |
| GPS Working Mode | Yes | |
| Working Temperature | 0℃~40℃ | |
| IP Rating | IPX5 | |
| Max. Incline Inside Working Area | 18°（30%） | |
| Connectivity | Bluetooth | Y |
| Wi-Fi | Y | |
| Battery Pack | Battery Type | Lithium-lon |
| Nominal Capacity/Energy | 4.4Ah | |
| Power Adapter | Input Voltage | 100-240V~50/60Hz |
| Output Voltage | 22V | |
| Output Current | 2.5A |
Shipping & Payment Terms
Shipping Method:
The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.
If you are in urgent need of the printer. Air shipment is also available, but it's costly.
Payment Terms:
We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
