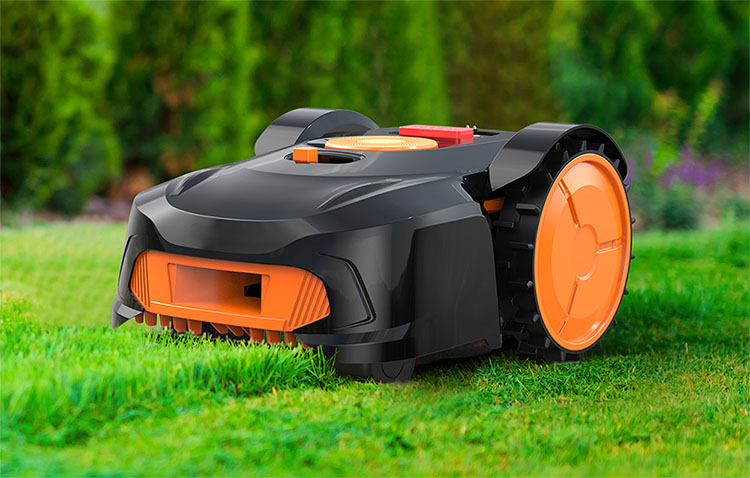

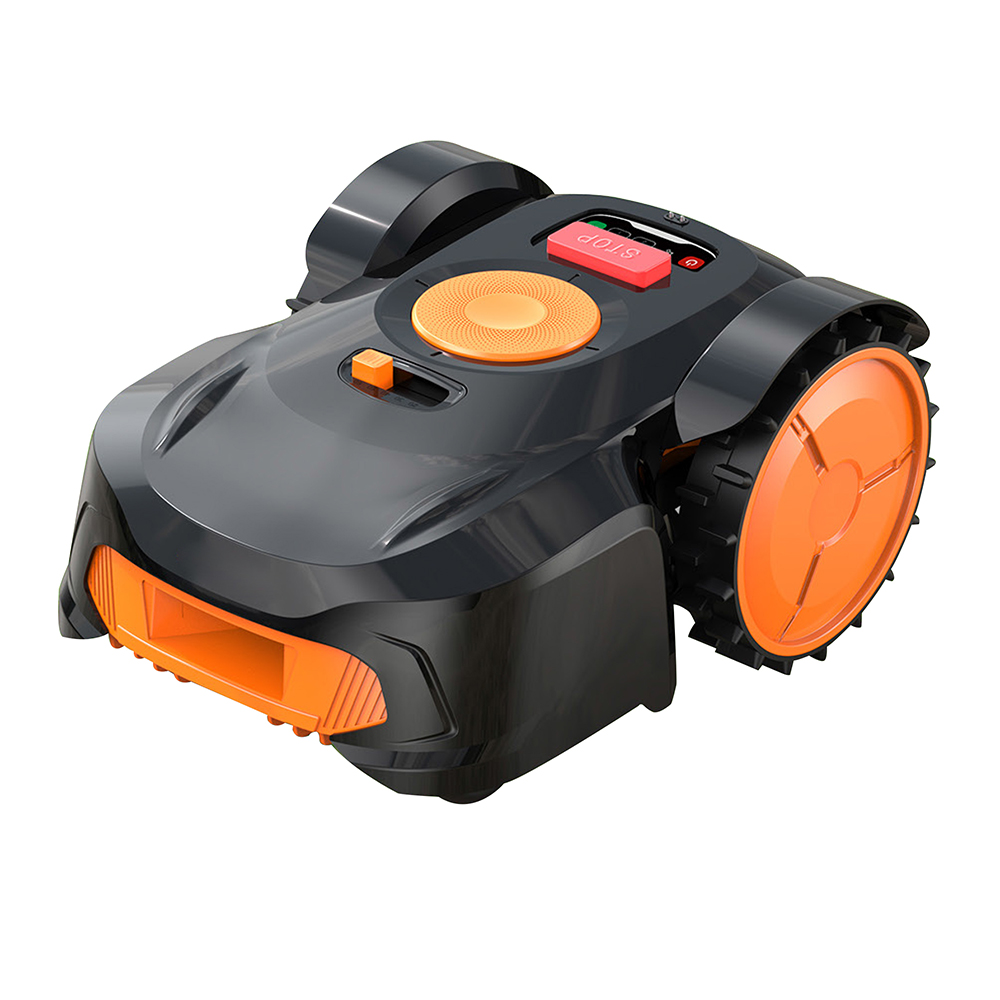

PDM18PRO Home Intelligent Satellite Navigation Cordless Electric Robot Lawn Mower Disc Cordless Garden Grass Cutting Machine
PDM18pro is a household intelligent lawn mower robot with a circle type orderly mowing. This model uses the PDM18pro circle-based boundary positioning system and upgrades the GNSS/IMU combined navigation solution.
Description
Prindream, a leading Chinese Manufacturer of Lawn Mowers
PDM18pro Smart Home Mowing Robot
PDM18pro is a household intelligent lawn mower robot with a circle type orderly mowing. This model uses the PDM18pro circle-based boundary positioning system and upgrades the GNSS/IMU combined navigation solution.
The RTK real-time dynamic measurement technology is used to accurately reduce the satellite positioning error from the meter level to the centimeter level. The reduction in error has led to a qualitative leap in the specific path planning algorithm, which means that in a large-area mowing environment, the machine does not need to divide the task area into small blocks like the PDM18pro, making the overall mowing track more beautiful.
The RTK real-time dynamic measurement technology is used to accurately reduce the satellite positioning error from the meter level to the centimeter level. The reduction in error has led to a qualitative leap in the specific path planning algorithm, which means that in a large-area mowing environment, the machine does not need to divide the task area into small blocks like the PDM18pro, making the overall mowing track more beautiful.

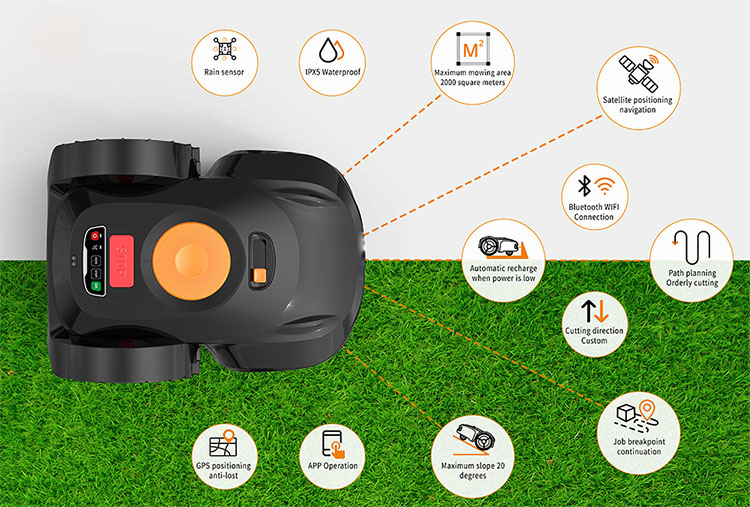

Rain sensor,IPX5 Waterproof,Maximum mowing area 2000 square meters,Satellite positioning navigation,Bluetooth WIFI Connection,
Automatic recharge when power is low,Orderly cutting,Cutting direction Custom,Job breakpoint continuation,Maximum slope 20
degrees,APP Operation,GPS positioning anti-lost
Automatic recharge when power is low,Orderly cutting,Cutting direction Custom,Job breakpoint continuation,Maximum slope 20
degrees,APP Operation,GPS positioning anti-lost
Split RTK Design&Autonomous Navigation Technology
Due to the unique split RTK antenna design, it can meet the needs of various scenarios and can be easily disassembled and installed to obtain the best use effect.

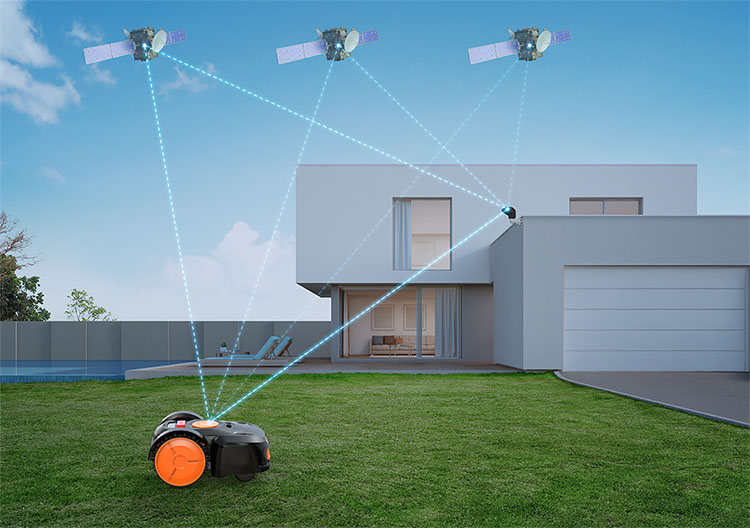

GNSS satellites can locate terminals on the earth by relying on a three dimensional coordinate system. Satellite positioning has errors. Errors come from both inside and outside the system. For example, errors are caused when
satellite signals penetrate the ionosphere and troposphere, errors caused by the Doppler effect caused by high-speed satellite movement, multipath effect errors, channel errors, satellite clock errors, ephemeris errors, internal noise
errors, and so on. Some of these errors can be completely eliminated, while others cannot be eliminated or can only be partially eliminated, which affects the accuracy and reliability of the system. In order to better eliminate errors
and improve positioning accuracy, industry experts have developed a more powerful positioning technology, which is RTK, which reduces the error unit from meters to centimeters.
satellite signals penetrate the ionosphere and troposphere, errors caused by the Doppler effect caused by high-speed satellite movement, multipath effect errors, channel errors, satellite clock errors, ephemeris errors, internal noise
errors, and so on. Some of these errors can be completely eliminated, while others cannot be eliminated or can only be partially eliminated, which affects the accuracy and reliability of the system. In order to better eliminate errors
and improve positioning accuracy, industry experts have developed a more powerful positioning technology, which is RTK, which reduces the error unit from meters to centimeters.
| PDM18pro | PDM28E | |
| Dimensions (length * width * height) | 520x380x250mm | 675x500x345mm |
| Weight (including battery | 10kg | 20kg |
| Material | Plastic | Plastic |
| Boundary line | yes | / |

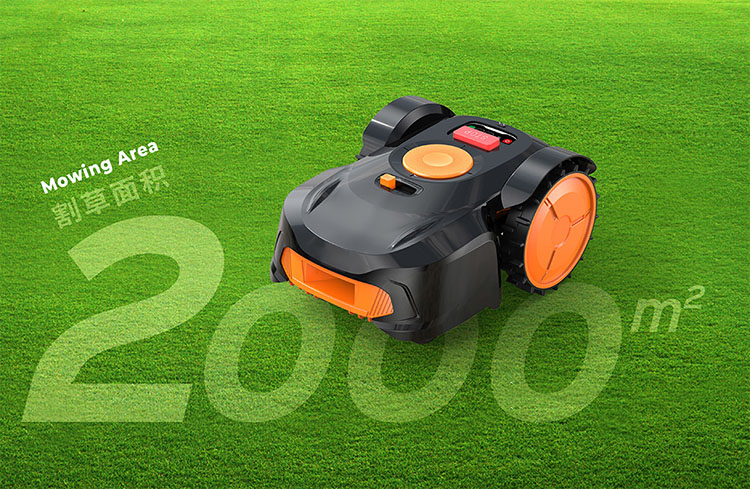

| Maximum mowing area | 2000 ㎡ | 4000 ㎡ |
| Mowing time (each full charge) | 120 minutes | 120 minutes |

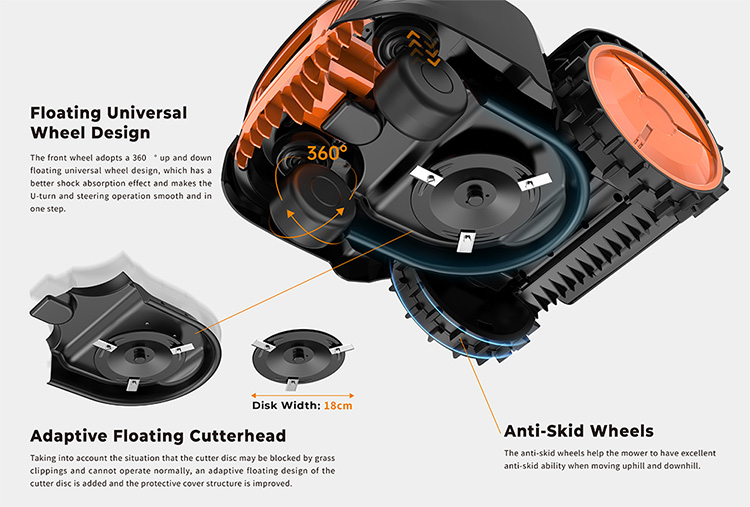

| Mowing width | 18cm | 28cm |

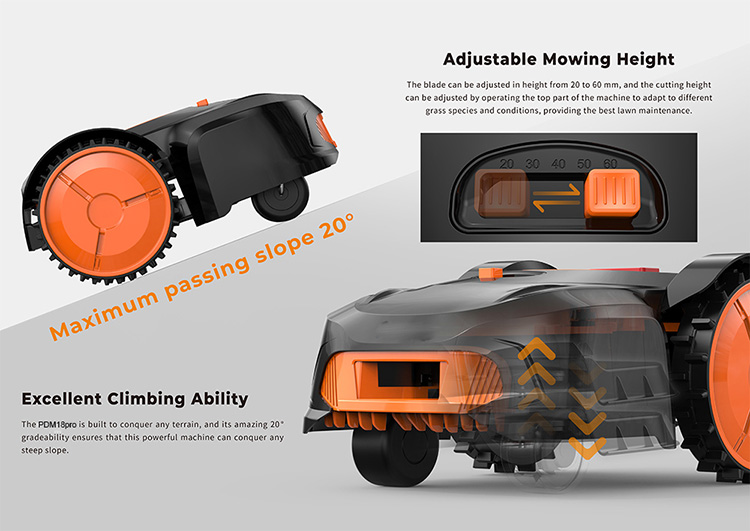

| Mowing height | 20-60mm | 30-80mm |
| Working temperature | 0℃ ~50℃ | 0℃ ~45℃ |
| Waterproof grade | IPX5 | IPX5 |
| The maximum inclination of the working area | 20° | 25° |
| Bluetooth | yes | yes |
| Wi-Fi | yes | yes |
| Battery type | Lithium battery | Lithium battery |
| Battery capacity | 4700mAh | 12500mAh |
| Input voltage | 100-240V~50/60Hz | 100-240V~50/60Hz |
| Output voltage | 23V | 21V |
| Output current | 2.0A | 5.0A |
| Working noise | 60dB(A) | 60dB(A) |
