PD-1500BP Electric Truck 3-wheel Tricycle Cargo Tricycle

PD-1500BP Factory Direct Powerful Energy Low Price Electric Cargo Electric Truck 3-wheel Tricycle Cargo Tricycle with Cargo Cab

Category: Tricycles

Description
Shipping & Payment Terms

Description

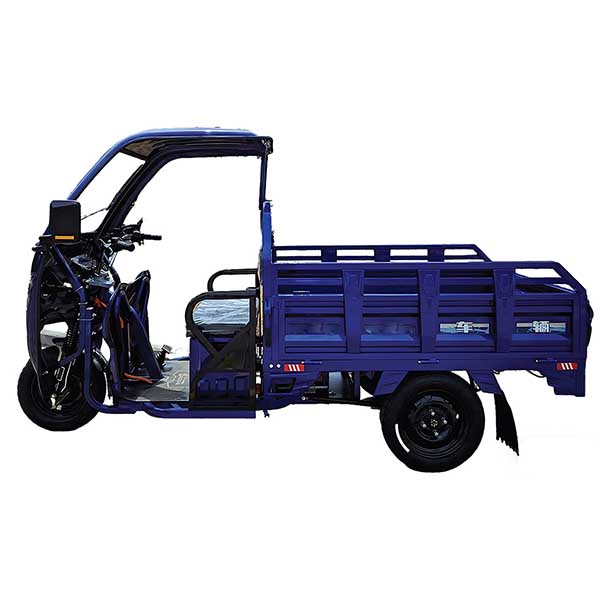

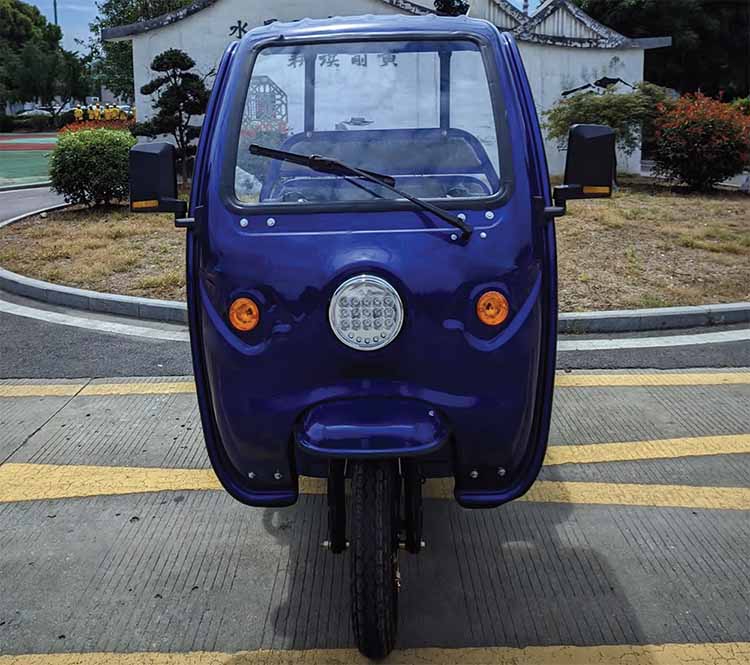

Cargo Tricycle 02 Cargo Tricycle 04 Cargo Tricycle 01

Mdel	PD-1500BP	Brake System	Front drum/Rear drum
Overall Dimension[mm)	298010901680	Front/Rear wheels	Front 3.50-12 Rear 3.75-12
Cargo box size[mm]	15001000350	Front fork	37φ
Wheel base[mm]	1940	Battery	48V60V72V 20Ah~200Ah
Wheel track{mm]	950	Charging time[H)	6~8
Curb weight[kg]	230	Rear axle	160 split rear axle
Load capacity[kg]	430	Maximum speed[Km/h]	35
Motor	48V60V 800W40h	Grade ability[%]	25-28
Controller	48V60V18tube	Container Capacity	50setsCKD/40HQ

Mdel	PD-1600BP	Brake System	Front drum/Rear drum
Overall Dimension[mm)	307011801680	Front/Rear wheels	Front 3.50-12 Rear 3.75-12
Cargo box size[mm]	16001050350	Front fork	37φ
Wheel base[mm]	1995	Battery	48V60V72V 20Ah~200Ah
Wheel track{mm]	980	Charging time[H)	6~8
Curb weight[kg]	240	Rear axle	160 split rear axle
Load capacity[kg]	450	Maximum speed[Km/h]	35
Motor	48V60V 1000W50h	Grade ability[%]	25-28
Controller	48V60V18tube	Container Capacity	50setsCKD/40HQ

Shipping & Payment Terms

Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.
