PD-1500C 3-Wheel Electric Tricycle

PD-1500C Hot Selling 3-Wheel Electric Tricycle Cargo Truck for Adults Electric Car Passenger Use 60V Rickshaw with Big Wheels

Category:
Description

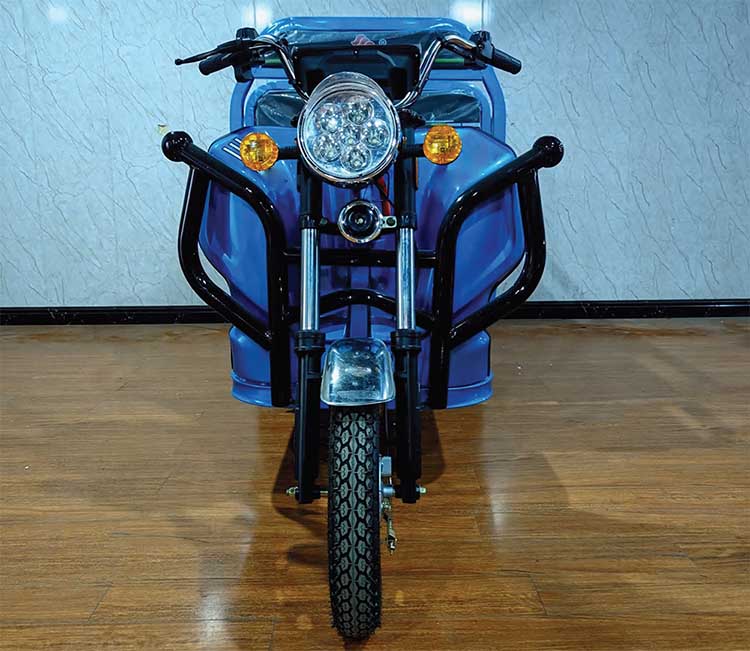

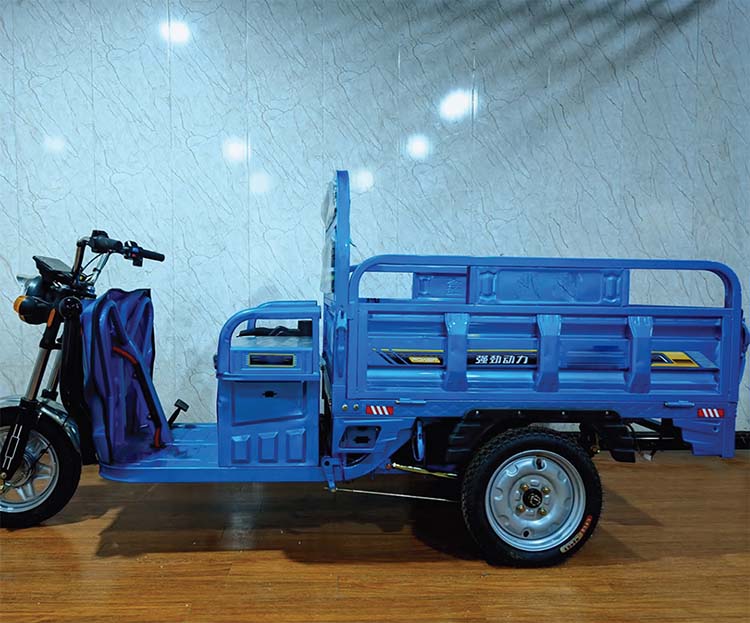

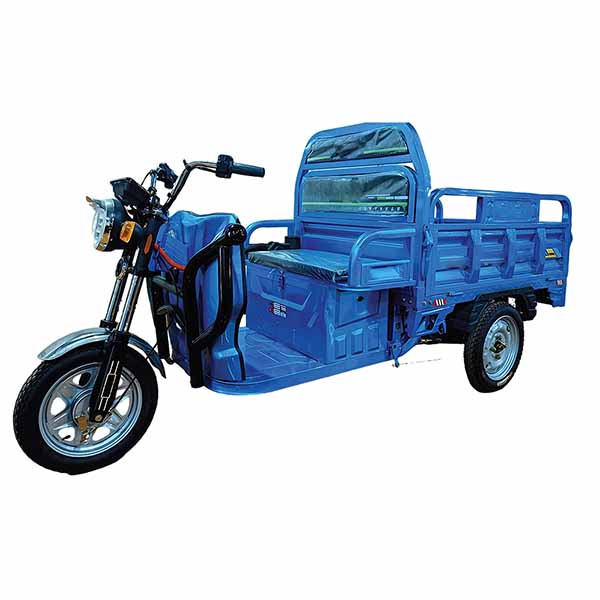

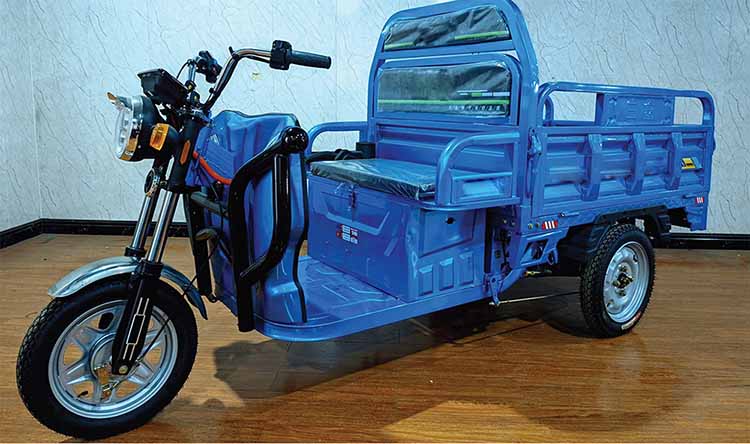

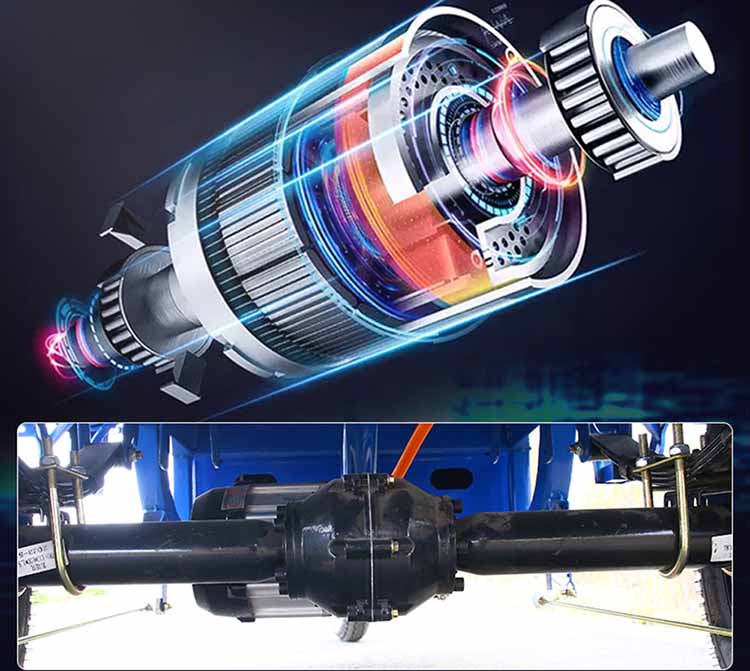

Electric Tricycle 05 Electric Tricycle 03 Electric Tricycle 04 Electric Tricycle 02

Mdel PD-1500C Brake System Front drum/Rear drum
Overall Dimension[mm) 2690*950*1300 Front/Rear wheels Front 3.00-12 Rear 3.00-12
Cargo box size[mm] 1200*900*350 Front fork 31φ
Wheel base[mm] 1820 Battery 48V60V20Ah~45Ah
Wheel track{mm] 790 Charging time[H) 6~8
Curb weight[kg] 170 Rear axle 130 split rear axle
Load capacity[kg] 430 Maximum speed[Km/h] 35
Motor 48V60V 650W30h Grade ability[%] 25-28
Controller 48V60V15tube Container Capacity 65setsCKD/40HQ
Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
