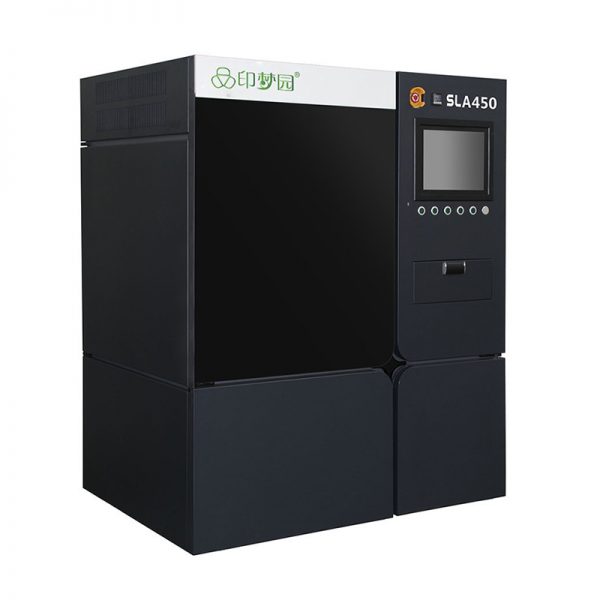

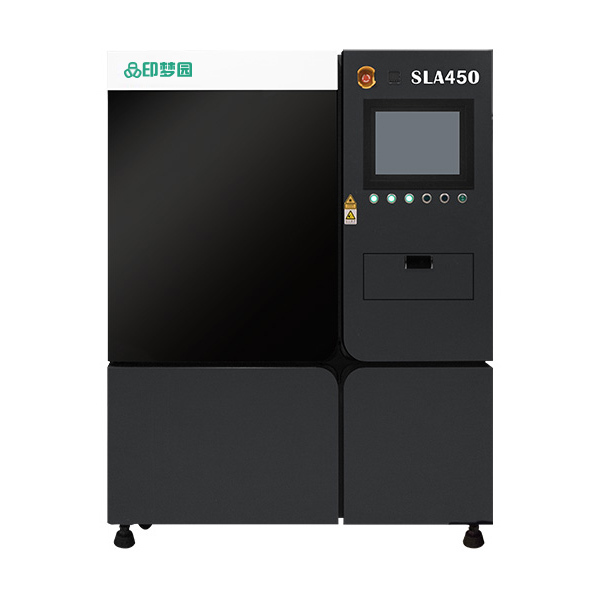

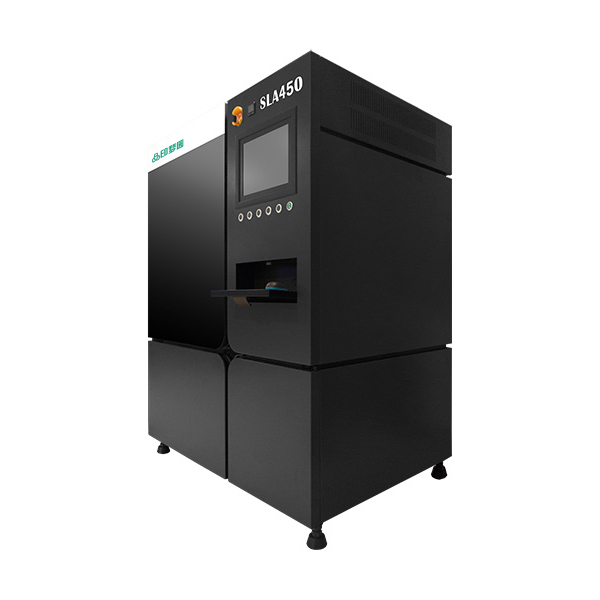

SLA-450 resin 3D printing machine for electronic shell plastics

Printing size: 450*450*300mm, mainly used in electronic shell, industrial hand plate, cultural creativity and other fields.The printing accuracy reach to 0.05mm, it can finished to verify the samples within a few hours.

Category:
Description

SLA450 3D printer is a medium-sized model developed for the electronic shell handboard industry, which combines printing size and printing speed at a good level,and the price is slightly higher than SLA300.

Usually, hand-made samples are needed for the products just developed or designed. Prototype is the first step to verify the feasibility of the products. It is the most direct and effective way to find out the defects, shortcomings and disadvantages of the designed products, so as to improve the design.This machine perfectly meets the needs of all kinds of research and development samples, easy to operate, fast printing, the sample can be completed within the same day.

Of course it is applicable for all kinds of industry product samples, if you know about SLA 3D printer,then you should know that the model of the plastic resin SLA 3D printer and print size launched by the manufacturers is not many, we are committed to meet the needs of users from all walks of life and try to target on each configuration and parameter design. We believe that machine is used to create a better service for human beings.

Introduction to SLA process

Prindream 3D Printers use stereolithography additive technology to meet the industrial application, besides design verification, functional prototyping and rigorous testing under the most extreme conditions.

Stereolithography is an additive manufacturing process which employs a vat of liquid ultraviolet curable photopolymer “resin” and an ultraviolet laser to build parts’ layers one at a time. For each layer, the laser beam traces a cross-section of the part pattern on the surface of the liquid resin. Exposure to the ultraviolet laser light cures and solidifies the pattern traced on the resin and joins it to the layer below.

The technology has many advantages for rapid prototyping, including professional quality and speed, and high precision. Stereolithography technology is a perfect solution for precision prototyping needs and sets the standard for finished-product realism.

principle

The SLA Series meets global rapid prototyping requirements.It is perfectly suited for below fields:Electronics/Aerospace/Art/Jewelry/Footwear/Medical Care/Building/Dental/Education

3D printing applications

Features

1.Fine detail and smooth surface finishing.

2.Print intricate details with accuracy achievable up to 0.05mm.

3.Parts can be printed within minutes to hours according to the size and complexity.

4.Complex structure parts and assembly parts can be printed.

5.Tough, precise, colorful, pure and heat resistant resin available.

6.Miscellaneous product range with different dimension available, including SLA1100, SLA800, SLA660, SLA550, SLA500, SLA450, SLA300



Ultra-fast printing speed, the ultimate dimensional accuracy, excellent surface quality. Prindream SLA 3D printer series will be your most sensible choice.

1.SLA Control System — Ultra fast precise building, dynamic focusing technology.

2.High-speed large spot, fine small spot, meeting both the dimensional accuracy and molding speed.

3.A new generation of Prindream Super dynamic focus technology, the manufacturing time is shortened 72% ↑ of the standard one.

4.Using Mutilol technology developed by Prindream, blur the “ladder effect” to make part surface more smooth.

5.Independent research and development of AnyDirect technology, balanced material stress and contraction, to further enhance the mechanical properties of forming parts.

Resin parts printing

3D printer machine parameters

Laser-type Diode pumped solid state laser Nd:YVO₄
Wave length 354.7nm
Laser power 1000/2000/3000mW
Coating way Intelligent positioning – vacuum adsorption coating
Normal thickness 0.1mm
Rapid layer thickness 0.1~0.15mm
Precision manufacturing layer thickness 0.05~0.1mm
Facula(dia.@1/e²) 0.10~0.50mm
Scanning galvanometer High speed scanning galvanometer
Scanning speed of parts 6.0m/s(recommend)
Jumping speed of parts 10.0m/s(recommend)
Reference production speed 30~80g/h
Repeated positioning accuracy ±0.01mm
Lifting motor High precision servo motor
Benchmark platform Marble benchmark platform
Standard volume About 98L 300mm(Z)
XY production platform 450mm(X)×450mm(Y)
Z-axis 300mm(standard) 350mm/400mm(customized)
Maximum piece weight 50kg 300mm(Z)
Resin heating mode Hot air heating
Network type Ethernet,TCP/IP,IEEE802.3
Control software iSLA Production software
Data processing software 3d Layer
Data interface CLI file,SLC file,STL file
Power 200~240VAC 50/60Hz, Single phase, 5 / 10Amps
Environment temperature 20-26ºC
Relative humidity Below 40%,Frost-free knot
Equitment size 1.45m(W)×1.05m(D)×1.85m(H)
Equitment weight About 820kg
Laser 5000 hour or 12 months(Whichever comes first)
The whole machine 12 months from the date of installation

White photosensitive resin/ High toughness resin/Soft resin/ High temperature resistant resinPrintable material:

3D printing resin parts

Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
