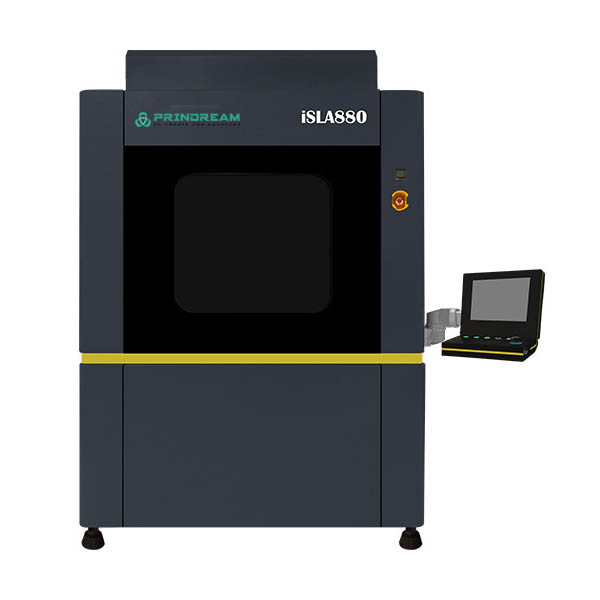

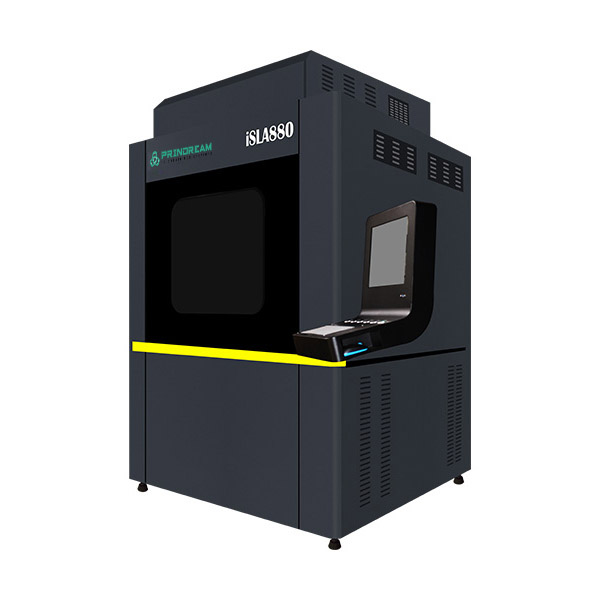

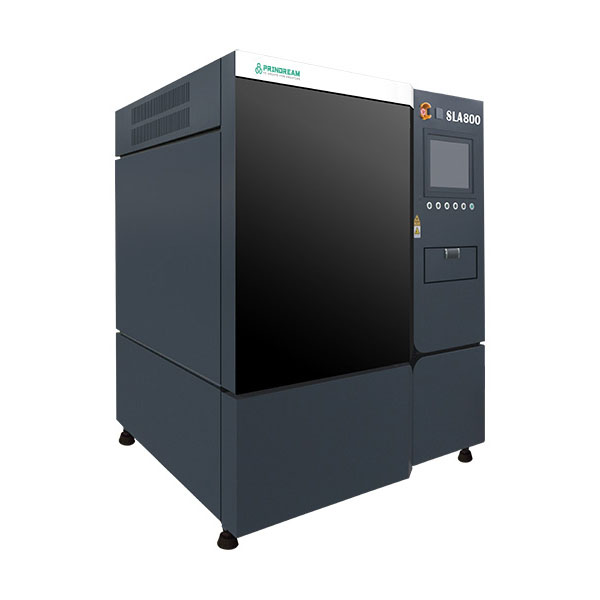

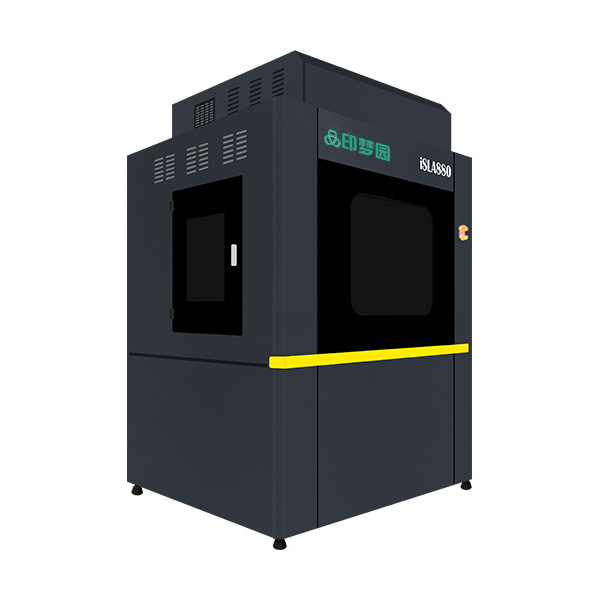

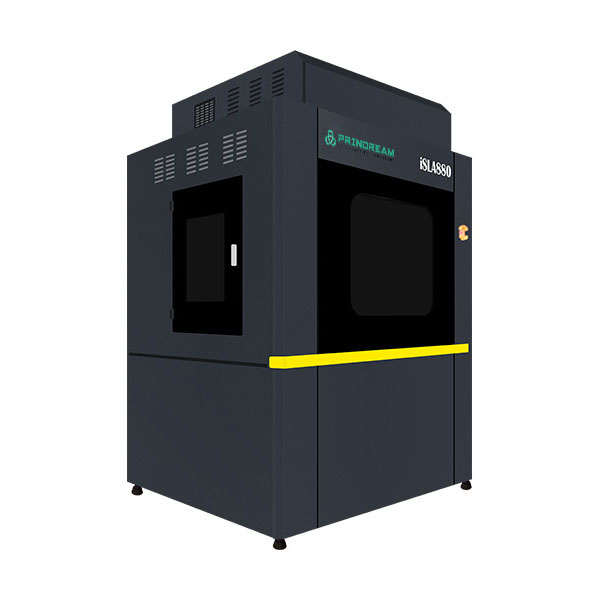

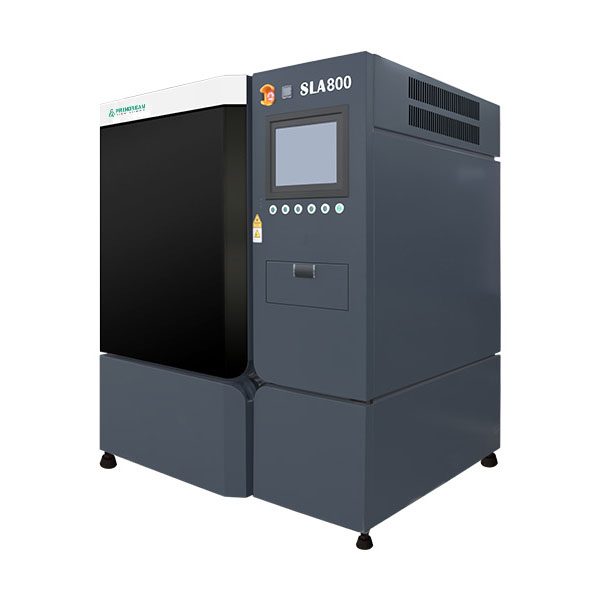

SLA-800/880 3D printer can print large auto parts of car

Printing size:600mm*800mm*400mm/800mm*800mm*400mm,The 3D printers are mainly developed for the automotive industry as well as large parts manufacturing areas.

INQUIRE NOW
Category: SLA Plastic 3D Printers
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Shipping & Payment Terms
Description

SLA800 3D printers are mainly developed for the automotive industry as well as large parts manufacturing areas. The printing size can reach 800mm.

Automobile manufacturing has always been a hot industry in the world. Compared with traditional technology, 3D printing is more faster, of lower parts manufacturing cost and higher confidentiality.With 3D printing technology, concept models can be created in few hours or days to help OEM and component manufacturers optimize design and accelerate product proof-of-concept processes.

As the quality of life improves, car modification industry is also booming, which belong to high custom fields, 3D printing fills this part of the customization requirement. Currently not many 3D printer manufacturers can make this machine due to the large size.Relying on the big market of Shanghai, we breakthrough the size limit early after years of grinding.

This printer is often used to print the front part of the car, the grille of the car, the control console of the car, the square plate of the car, and the bumper of the car rear, etc. It is also used to make the whole model for a car, which is not a problem.

We also developed SLA880 3D printer for different customers, for which the width increased by 200mm and the height increased by 100mm, and the entire size reached 800mm*800mm*500mm. We believe that such a large size 3D printer can bring you a better 3D printing experience.

Introduction to SLA process

Prindream 3D Printers use stereolithography additive technology to meet the industrial application, besides design verification, functional prototyping and rigorous testing under the most extreme conditions.

Stereolithography is an additive manufacturing process which employs a vat of liquid ultraviolet curable photopolymer “resin” and an ultraviolet laser to build parts’ layers one at a time. For each layer, the laser beam traces a cross-section of the part pattern on the surface of the liquid resin. Exposure to the ultraviolet laser light cures and solidifies the pattern traced on the resin and joins it to the layer below.

The technology has many advantages for rapid prototyping, including professional quality and speed, and high precision. Stereolithography technology is a perfect solution for precision prototyping needs and sets the standard for finished-product realism.

principle

The SLA Series meets global rapid prototyping requirements.It is perfectly suited for below fields:Electronics/Aerospace/Art/Jewelry/Footwear/Medical Care/Building/Dental/Education

3D printing applications

Features

1.Fine detail and smooth surface finishing.

2.Print intricate details with accuracy achievable up to 0.05mm.

3.Parts can be printed within minutes to hours according to the size and complexity.

4.Complex structure parts and assembly parts can be printed.

5.Tough, precise, colorful, pure and heat resistant resin available.

6.Miscellaneous product range with different dimension available, including SLA1100, SLA800, SLA660, SLA550, SLA500, SLA450, SLA300



Ultra-fast printing speed, the ultimate dimensional accuracy, excellent surface quality. Prindream SLA 3D printer series will be your most sensible choice.

1.SLA Control System — Ultra fast precise building, dynamic focusing technology.

2.High-speed large spot, fine small spot, meeting both the dimensional accuracy and molding speed.

3.A new generation of Prindream Super dynamic focus technology, the manufacturing time is shortened 72% ↑ of the standard one.

4.Using Mutilol technology developed by Prindream, blur the “ladder effect” to make part surface more smooth.

5.Independent research and development of AnyDirect technology, balanced material stress and contraction, to further enhance the mechanical properties of forming parts.

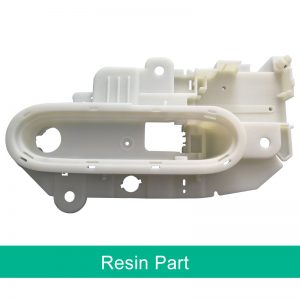

Resin parts printing

Parameter table

Laser-type Diode pumped solid state laser Nd:YVO₄
Wave length 354.7nm
Laser power 1000/2000/3000mW
Coating way Intelligent positioning – vacuum adsorption coating
Normal thickness 0.1mm
Rapid layer thickness 0.1~0.15mm
Precision manufacturing layer thickness 0.05~0.1mm
Facula(dia.@1/e²) 0.10~0.16mm(Normal) 0.10~0.50mm(Dynamic zoom)
Scanning galvanometer High speed scanning galvanometer
Scanning speed of parts 6.0m/s(recommend)
Jumping speed of parts 10.0m/s(recommend)
Reference production speed 80~210g/h
Repeated positioning accuracy ±0.01mm
Lifting motor High precision servo motor
Benchmark platform Marble benchmark platform
Standard volume About 285L/345L 400mm(Z)
XY production platform 600mm(X)×800mm(Y)/800mm(X)×800mm(Y)
Z-axis 400mm(standard) ≤550mm(customized)
Maximum piece weight 100kg 400mm(Z)
Resin heating mode Hot air heating
Network type Ethernet,TCP/IP,IEEE802.3
Control software iSLA Production software
Data processing software 3d Layer
Data interface CLI file,SLC file,STL file
Power 200~240VAC 50/60Hz, Single phase, 5 / 10Amps
Environment temperature 20-26ºC
Relative humidity Below 40%,Frost-free knot
Equitment size 1.65m(W)×1.50m(D)×2.20m(H)
Equitment weight About 1350kg/1000kg(SLA880)
Laser 5000 hour or 12 months(Whichever comes first)
The whole machine 12 months from the date of installation



White photosensitive resin/ High toughness resin/Soft resin/ High temperature resistant resin
Printable material:

3D printing resin parts

Shipping & Payment Terms
Shipping Method:

For 3D printers, the 3D printers packed on pallet along with all accesories are usually shipped by sea with a 40HQ container . Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years . the shiping fee is on customers, but we will provide all necessary assistance. if you are in urgent need of the printer , Air shipment is also available . but it is costly .

For 3D Printing service , goods will be packed in carton, if small quantity , we recommend you by air , DOOR TO DOOR service , if big quantity , they can be sent by ship , Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years . the shiping fee is on customers, but we will provide all necessary assistance.

For 3D Design & Modeling service , we will send you the files through internet , by email or other way that you can receive.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
