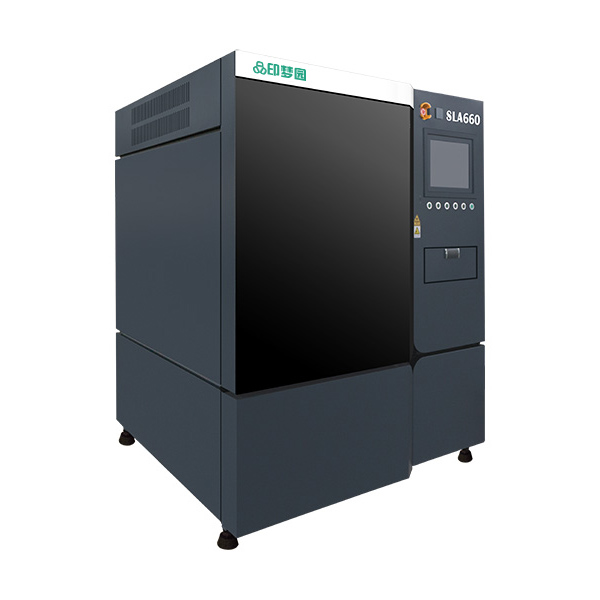

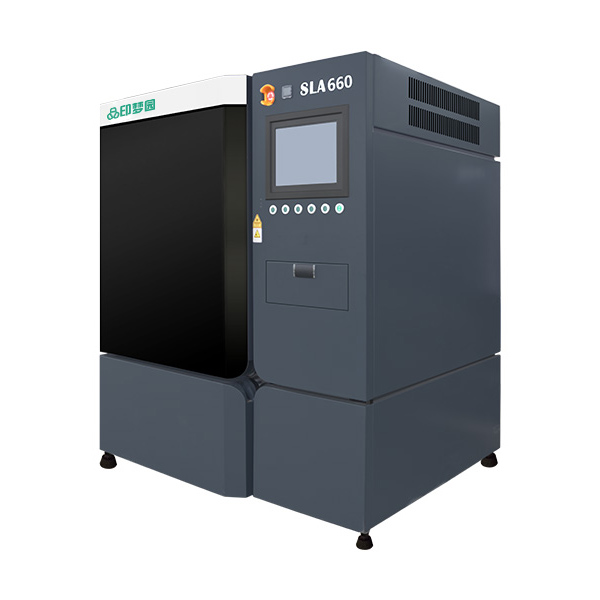

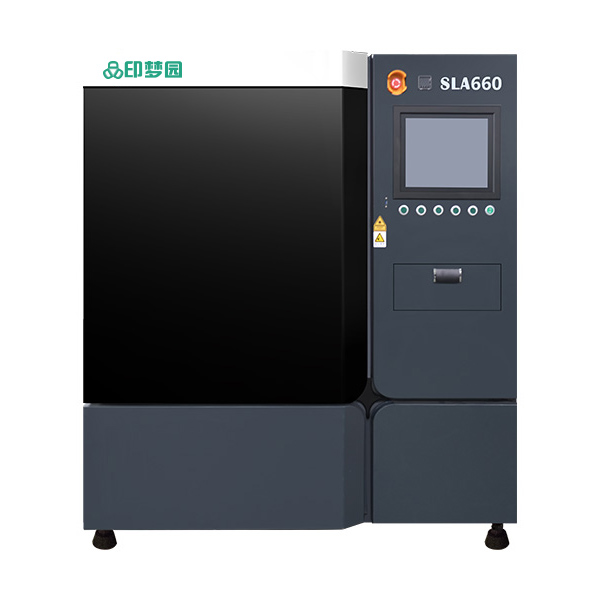

SLA-660 3D printer is used in architectural model and exhibition industry

Printing size: 600*600*300mm,The 3d printer is mainly suitable for modeling manufacturing, exhibition model making exquisite high-precision 3D printing.

Category:
Description

SLA660 3D printer can achieve 600mm in printing size, which is usually used for the sample of architectural model and exhibition model. Many modeling companies and design companies prefer to use this machine, mainly because this machine, as a leading laser printer, can not only achieve 600mm in printing size, but also maintain high level in printing speed and accuracy.

In urban planning, it is often necessary to make a miniature model of the park.This machine caters to this part of the demand, widely used in the field of construction sand table and has been recognized by customers around the world, especially for the details of the expressiveness which is particularly prominent.Some buildings are relatively large, but the machine can finish an integrated print,reducing the trouble for later assembly.

With the continuous update and iteration of 3D laser printer technology, we keep expanding and updating, and keep improving the machine. After our continuous testing and printing, SLA660 3D printer can produce 3-4kg printed parts within 24 hours, because the size of these parts were printed large enough.So if a company need a part with short development cycles, this machine can finish a plastic model just in a day or night.

In line with the principle of production efficiency as the first priority, we specifically designed the laser scanning mode, especially for large planes and relatively thick wall-like structures. By controlling the size of the light spot, the single-layer scanning efficiency was greatly enhanced and the time was greatly shortened.

In the field of exhibition, Of course, the machine is also quite suitable.Because it can show enough details, as long as the concave-convex structure can reach 0.35mm, the finished product of the display model is very delicate.



Introduction to SLA process

Prindream 3D Printers use stereolithography additive technology to meet the industrial application, besides design verification, functional prototyping and rigorous testing under the most extreme conditions.

Stereolithography is an additive manufacturing process which employs a vat of liquid ultraviolet curable photopolymer “resin” and an ultraviolet laser to build parts’ layers one at a time. For each layer, the laser beam traces a cross-section of the part pattern on the surface of the liquid resin. Exposure to the ultraviolet laser light cures and solidifies the pattern traced on the resin and joins it to the layer below.

The technology has many advantages for rapid prototyping, including professional quality and speed, and high precision. Stereolithography technology is a perfect solution for precision prototyping needs and sets the standard for finished-product realism.

principle

The SLA Series meets global rapid prototyping requirements.It is perfectly suited for below fields:Electronics/Aerospace/Art/Jewelry/Footwear/Medical Care/Building/Dental/Education

3D printing applications

Features

1.Fine detail and smooth surface finishing.

2.Print intricate details with accuracy achievable up to 0.05mm.

3.Parts can be printed within minutes to hours according to the size and complexity.

4.Complex structure parts and assembly parts can be printed.

5.Tough, precise, colorful, pure and heat resistant resin available.

6.Miscellaneous product range with different dimension available, including SLA1100, SLA800, SLA660, SLA550, SLA500, SLA450, SLA300



Ultra-fast printing speed, the ultimate dimensional accuracy, excellent surface quality. Prindream SLA 3D printer series will be your most sensible choice.

1.SLA Control System — Ultra fast precise building, dynamic focusing technology.

2.High-speed large spot, fine small spot, meeting both the dimensional accuracy and molding speed.

3.A new generation of Prindream Super dynamic focus technology, the manufacturing time is shortened 72% ↑ of the standard one.

4.Using Mutilol technology developed by Prindream, blur the “ladder effect” to make part surface more smooth.

5.Independent research and development of AnyDirect technology, balanced material stress and contraction, to further enhance the mechanical properties of forming parts.

Resin parts printing

Parameter table

Laser-type Diode pumped solid state laser Nd:YVO₄
Wave length 354.7nm
Laser power 1000/2000/3000mW
Coating way Intelligent positioning – vacuum adsorption coating
Normal thickness 0.1mm
Rapid layer thickness 0.1~0.15mm
Precision manufacturing layer thickness 0.05~0.1mm
Facula(dia.@1/e²) 0.10~0.50mm
Scanning galvanometer High speed scanning galvanometer
Scanning speed of parts 6.0m/s(recommend)
Jumping speed of parts 10.0m/s(recommend)
Reference production speed 50~180g/h
Repeated positioning accuracy ±0.01mm
Lifting motor High precision servo motor
Benchmark platform Marble benchmark platform
Standard volume About 160L 300mm(Z)
XY production platform 600mm(X)×600mm(Y)
Z-axis 300mm(standard) 350mm/400mm(customized)
Maximum piece weight 80kg 300mm(Z)
Resin heating mode Hot air heating
Network type Ethernet,TCP/IP,IEEE802.3
Control software iSLA Production software
Data processing software 3d Layer
Data interface CLI file,SLC file,STL file
Power 200~240VAC 50/60Hz, Single phase, 5 / 10Amps
Environment temperature 20-26ºC
Relative humidity Below 40%,Frost-free knot
Equitment size 1.60m(W)×1.30m(D)×1.90m(H)
Equitment weight About 1000kg
Laser 5000 hour or 12 months(Whichever comes first)
The whole machine 12 months from the date of installation

White photosensitive resin/ High toughness resin/Soft resin/ High temperature resistant resinPrintable material:

3D printing resin parts
