PD-1500BW Versatile Closed Electric Freight Tricycle

Versatile Closed Electric Freight Tricycle 60V Electric Freight Tricycles 3 Wheel for Street Shopping and Daily Errands

Category:
Description

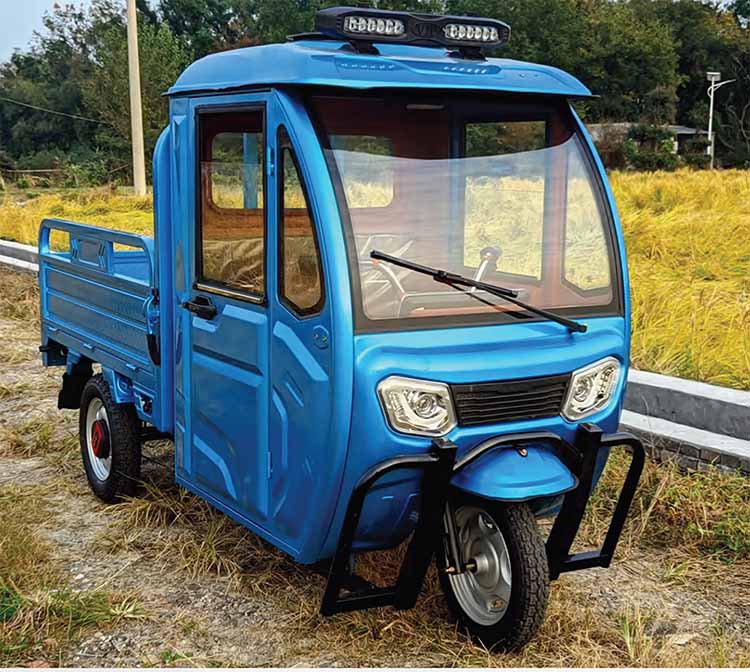

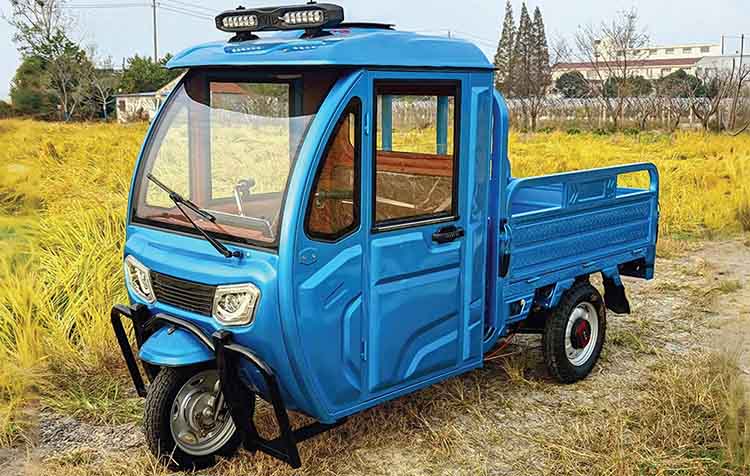

Electric Freight Tricycle 04 Electric Freight Tricycle 02 Electric Freight Tricycle 01

Mdel PD-1500BW Brake System Front drum/Rear drum
Overall Dimension[mm) 2995*1080*1650 Front/Rear wheels Front 3.50-12 Rear 4.00-12
Cargo box size[mm] 1500*1000*350 Front fork 37φ
Wheel base[mm] 1970 Battery 48V60V72V 20Ah~200Ah
Wheel track{mm] 950 Charging time[H) 6~8
Curb weight[kg] 280 Rear axle 160 split rear axle
Load capacity[kg] 500 Maximum speed[Km/h] 35
Motor 48V60V72V 1000W50h Grade ability[%] 25-28
Controller 48V60V72V18 tube Container Capacity 12setsCKD/40HQ



Mdel PD-1600BW Brake System Front drum/Rear drum
Overall Dimension[mm) 3105*1150*1650 Front/Rear wheels Front 3.50-12 Rear 4.00-12
Cargo box size[mm] 1600*1100*350 Front fork 37φ
Wheel base[mm] 2000 Battery 48V60V72V 20Ah~200Ah
Wheel track{mm] 1000 Charging time[H) 6~8
Curb weight[kg] 290 Rear axle 160 split rear axle
Load capacity[kg] 500 Maximum speed[Km/h] 35
Motor 48V60V72V 1000W50h Grade ability[%] 25-28
Controller 48V60V72V18 tube Container Capacity 12setsCKD/40HQ
Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
