PD-1500PB Open Body 60V for Cargo Tricycle

PD-1500PB Hot-selling 3 Wheel Electric Tricycle 2000W Motor High Load Capacity 400kg+ Open Body 60V for Cargo Transportation

Category:
Description

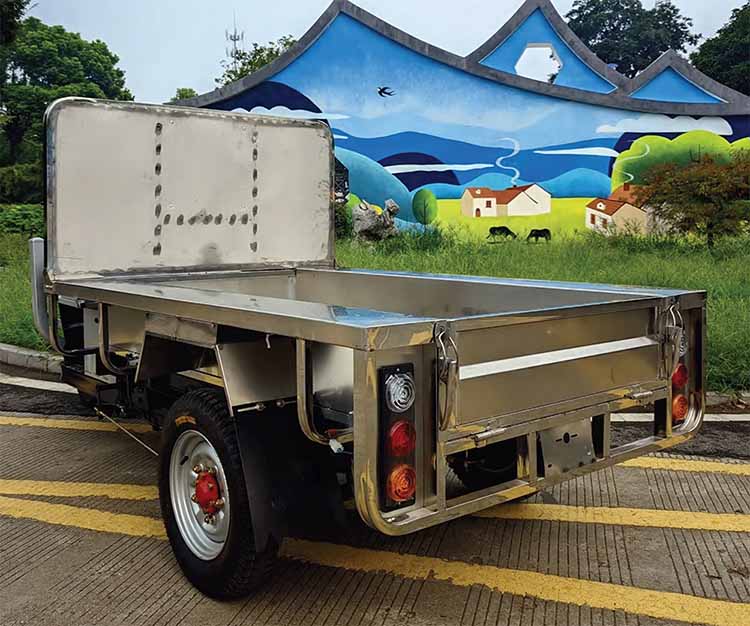

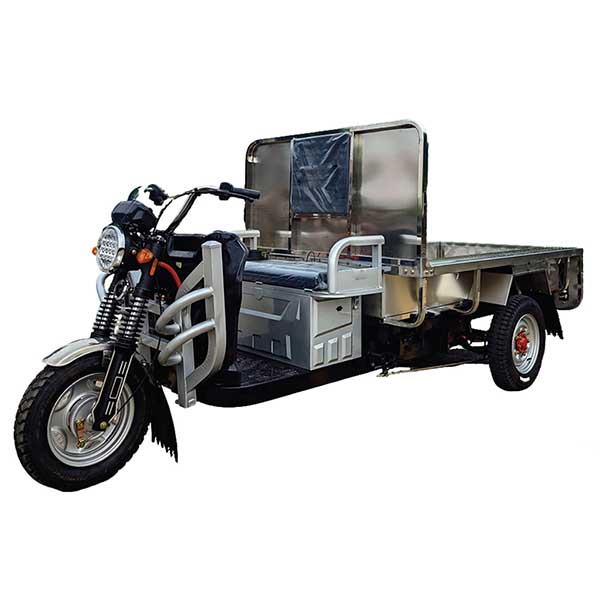

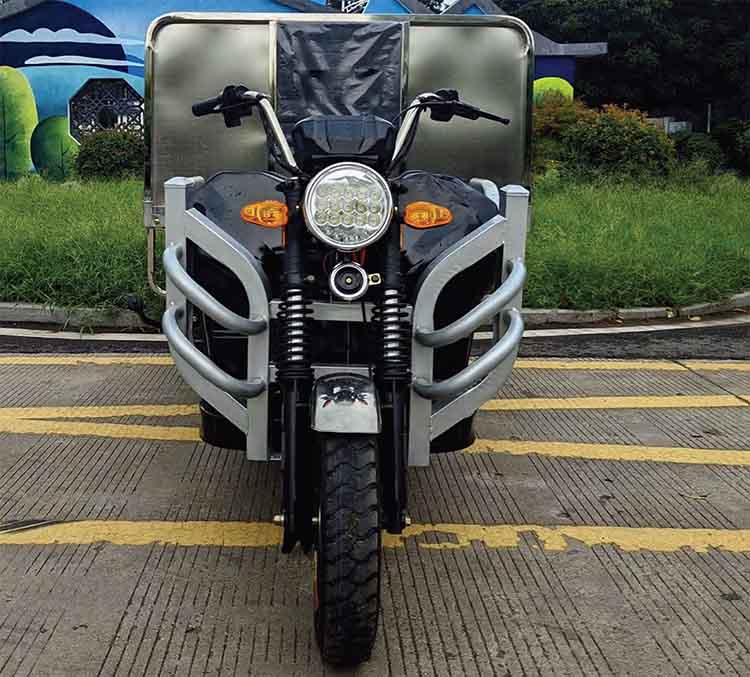

Cargo Tricycle -1 Cargo Tricycle -2 Cargo Tricycle -4

Mdel PD-1500PB Brake System Front drum/Rear drum
Overall Dimension[mm) 2995*1080*1650 Front/Rear wheels Front 4.00-12 Rear 4.50-12
Cargo box size[mm] 1800*1260 Front fork 43φ
Wheel base[mm] 2180 Battery 48V60V72V 20Ah~200Ah
Wheel track{mm] 1040 Charging time[H) 6~8
Curb weight[kg] 325 Rear axle 220 split rear axle
Load capacity[kg] 800 Maximum speed[Km/h] 35
Motor 48V60V72V 2000W80h Grade ability[%] 25-28
Controller 48V60V72V30 tube Container Capacity 26setsCKD/40HQ
Car material 301 stainless steel
Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
