PD-1500JY Wholesale Insulated Transportation Electric Tricycle

Wholesale Insulated Transportation Electric Tricycle Enclosed Tricycle Electric Van Cargo Tricycle Electric with Closed Cabin

Category:
Description

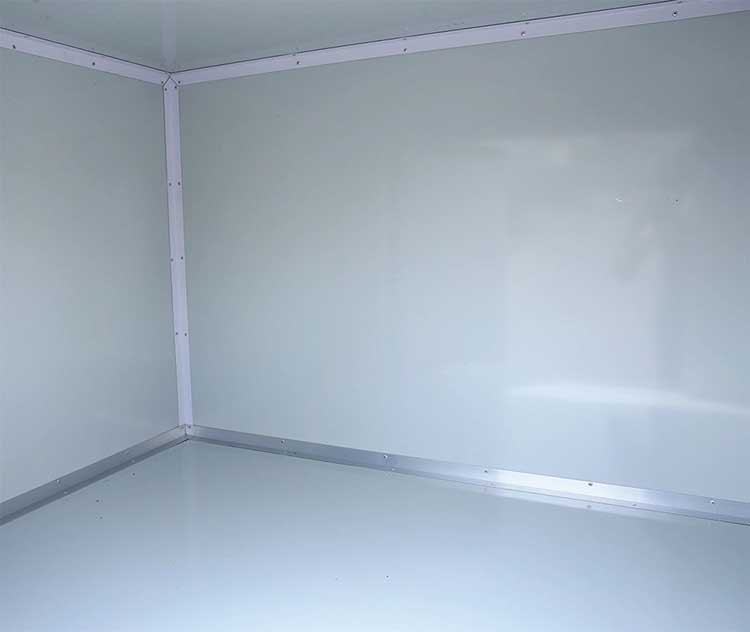

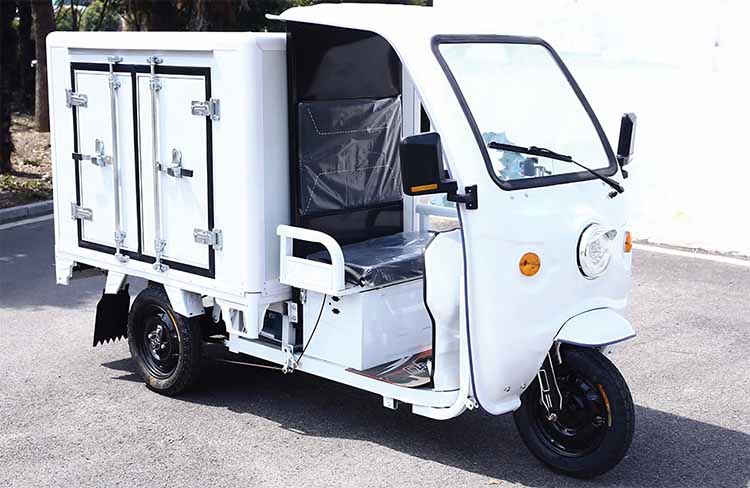

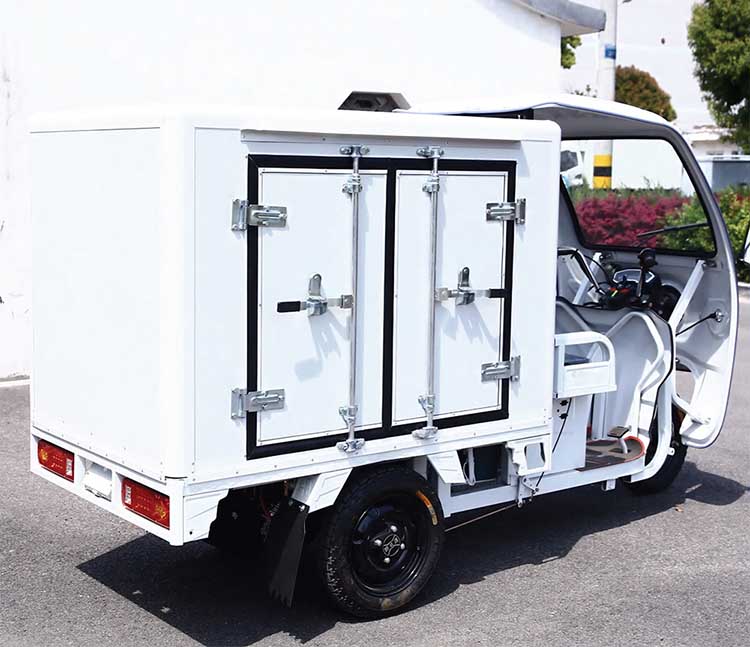

Insulated Electric Tricycle 02 Insulated Electric Tricycle 01 Insulated Electric Tricycle 03

Mdel PD-1500JY Brake System Front drum/Rear drum
Overall Dimension[mm) 2995*1080*1650 Front/Rear wheels Front 3.75-12 Rear 3.75-12
Cargo box size[mm] 1500*1000*1000 Front fork 37φ
Wheel base[mm] 1970 Battery 48V60V72V 20Ah~200Ah
Wheel track{mm] 950 Charging time[H) 6~8
Curb weight[kg] 240 Rear axle 160 split rear axle
Load capacity[kg] 400 Maximum speed[Km/h] 35
Motor 48V60V72V 800W40h Grade ability[%] 25-28
Controller 48V60V72V18 tube Container Capacity 45 setsCKD/40HQ
Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
