PD-1500DZH Electric Tricycle

PD-1500DZH Electric Tricycle for Adults Customizable Color Open Cargo Lightweight Flatbed with 200-300kg Payload & 50-70km Range

Category:
Description

Electric Tricycle 01 Electric Tricycle 03 Electric Tricycle 04 Electric Tricycle 07 Electric Tricycle 05

Mdel PD-1500DZH-D Brake System Front drum/Rear drum

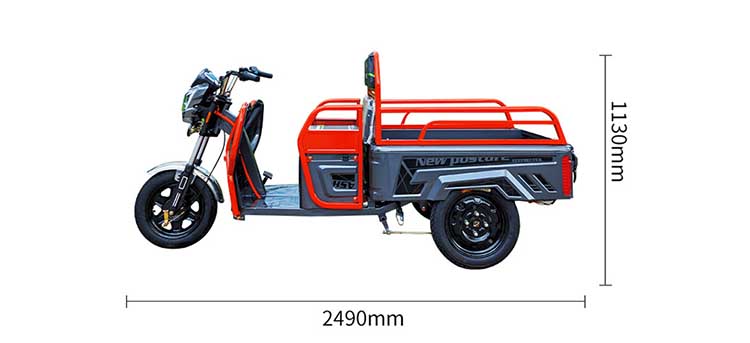

Overall Dimension[mm) 2490*886*1130 Front/Rear wheels Front 3.00-12 Rear 3.00-12
Cargo box size[mm] 1100*850*350 Front fork 31φ
Wheel base[mm] 1655 Battery 48V60V20Ah~45Ah
Wheel track{mm] 720 Charging time[H) 6~8
Curb weight[kg] 130 Rear axle 130 split rear axle
Load capacity[kg] 300 Maximum speed[Km/h] 35
Motor 48V60V 650W30h Grade ability[%] 25-28
Controller 48V60V12tube Container Capacity 70setsCKD/40HQ



Mdel PD-1500DZH-L Brake System Front drum/Rear drum
Overall Dimension[mm) 2595*940*1130 Front/Rear wheels Front 3.00-12 Rear 3.00-12
Cargo box size[mm] 1200*900*350 Front fork 31φ
Wheel base[mm] 1745 Battery 48V60V20Ah~45Ah
Wheel track{mm] 790 Charging time[H) 6~8
Curb weight[kg] 135 Rear axle 130 split rear axle
Load capacity[kg] 320 Maximum speed[Km/h] 35
Motor 48V60V 650W30h Grade ability[%] 25-28
Controller 48V60V12tube Container Capacity 65setsCKD/40HQ
Shipping & Payment Terms
Shipping Method:

The 3D printer packed on pallet along with all the accessories are usually shipped by sea with a 40HQ container. Customers can either designate their own shipping forwarder or use our forwarder which we have worked with for many years. The shipping fee is on customers, but we will provide with all necessary assistance.

If you are in urgent need of the printer. Air shipment is also available, but it's costly.

Payment Terms:

We accept T/T, W/U, PayPal. 50% deposit down with the order and 50% balance before shipment.
